In NSA, how to measure Ping pong between B1 and A2?

Mobility
,
1

Hi All.

In NSA, how to measure Ping pong between B1 and A2?

Vendor Huawei

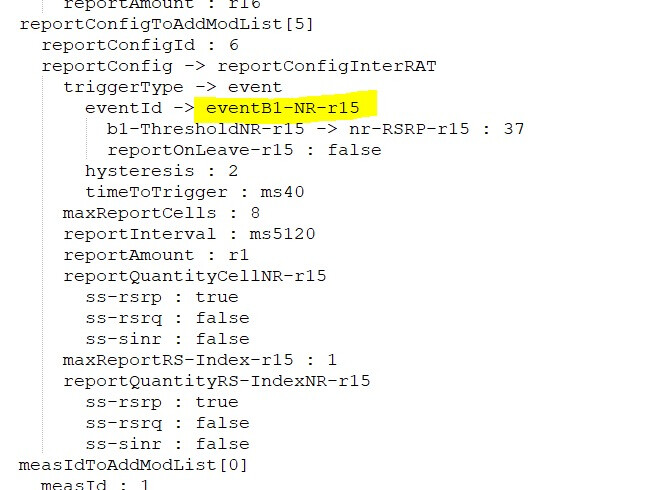

Admin note: this post was updated with image below.
In NSA, how to measure Ping pong between B1 and A2

2

First of all, put some offset between (B1 and A2) them at least 8 dB.

3

Any solid measurements here like counter maybe?

Instead of field measurements, I mean.

4

There will be no ping pong if you make proper offset as suggested by @RFSpecialist.

5

Yes, totally agreed.

I just want to know is there any measurements to prove it from stats instead of field measurements.

6

You have for SCG addition:

L.NsaDc.SgNB.Add.Succ: total number of successful SgNB additions for UES that treat the local cell as their PCell in the LTE-NR NSA DC state.

But can’t find for removal of SCG.

7

That’s the point.

8

This is in 4G counters try also 5G counters.

Maybe it is there.

9

I couldn’t find from 5G as well so far.

But let me double double check.

10

A2 is inter-freq HO, B1 is iRAT HO, right?

11

B1 NR is to add SCG.

A2 NR is to remove SCG.

So B1 should be like -116 dBm and A2 something like -124 dBm.

But it depends on bands.

Also time to trigger hyst etc.

In NSA, how to measure Ping pong between B1 and A2

12

A2 is for start looking handover it may be both for inter - freq and intra-freq.

After A2, event A5 occurs for inter-freq.
