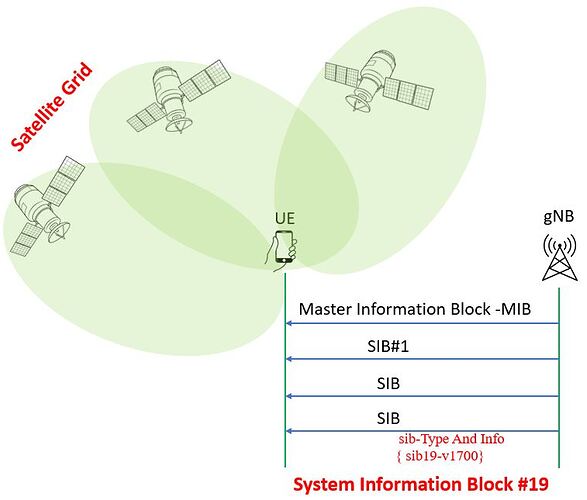

In 5G NR, System Information Block #19 (SIB19) carries information for UE to access Non Terrestrial Network- NTN or 5G Satellite Network.
SIB19 was introduced by 3GPP in Release 17 providing NTN-specific parameters for serving cell and/or neighbor cells. It contains satellite assistance information, for example, Ephemeris data, common timing advance parameters, koffset, validity duration for UL synchronization epoch time, cell reference location, cell stop time.
Read more:
SIB 19 in 5G NR: Details and Explanation
In the continuous evolution of 5G, System Information Block 19 (SIB 19) is a critical component introduced in 3GPP TS 38.331, Release 17. SIB 19 plays a key role in enabling User Equipment (UE) to connect with Non-Terrestrial Networks (NTNs), such as satellite networks, extending 5G coverage to areas where traditional terrestrial networks are out of reach.
Q : Why SIB 19 is Important ?
Q : How does the network decide when to include SIB 19 in its system information broadcasts?
=> The inclusion of SIB 19 in system information broadcasts is typically decided by the network operator based on the deployment strategy and coverage requirements. If the network supports NTN services, such as satellite connectivity, and if the service area falls within the coverage of these NTNs, the operator configures the gNB to broadcast SIB 19. This decision is often based on geographical considerations, user demand, and the availability of NTN infrastructure.
Q: How does SIB 19 handle time synchronization for UEs in Non-Terrestrial Networks?

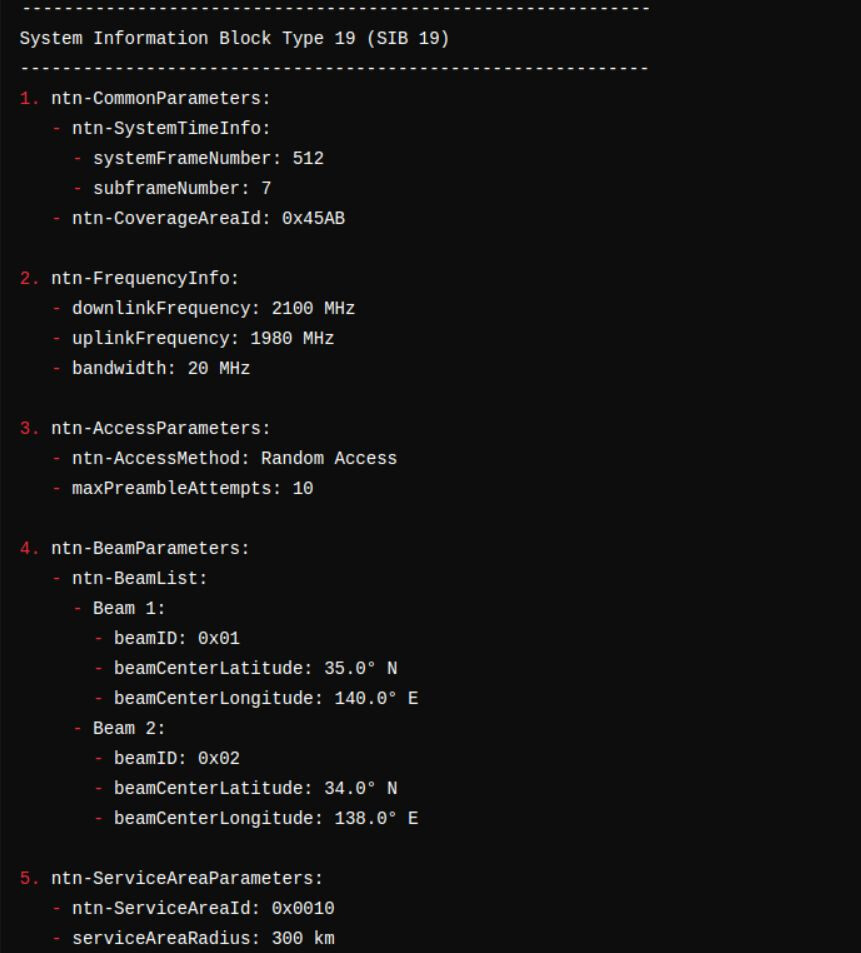

=> SIB 19 includes the ntn-SystemTimeInfo element, which provides the system time information of the NTN. This is crucial for UEs to synchronize their operations with the satellite or other non-terrestrial platform. The time synchronization is especially important in NTNs because of the potential latency differences compared to terrestrial networks. SIB 19 ensures that UEs can accurately align their time settings with the NTN, reducing the risk of communication errors due to time discrepancies.
Q : How does SIB 19 support the dynamic nature of satellite coverage and beamforming?
=> SIB 19 supports dynamic satellite coverage and beamforming by including detailed ntn-BeamInformation. This information specifies the beam ID, geographical coverage, and operational parameters for each beam. Since satellite beams can be dynamically adjusted to focus on different areas based on demand, SIB 19 ensures that UEs receive up-to-date information about which beams are active and relevant to their current location. Additionally, SIB 19 may include parameters for adaptive beam management, allowing UEs to switch between beams as the satellite’s coverage area changes.
