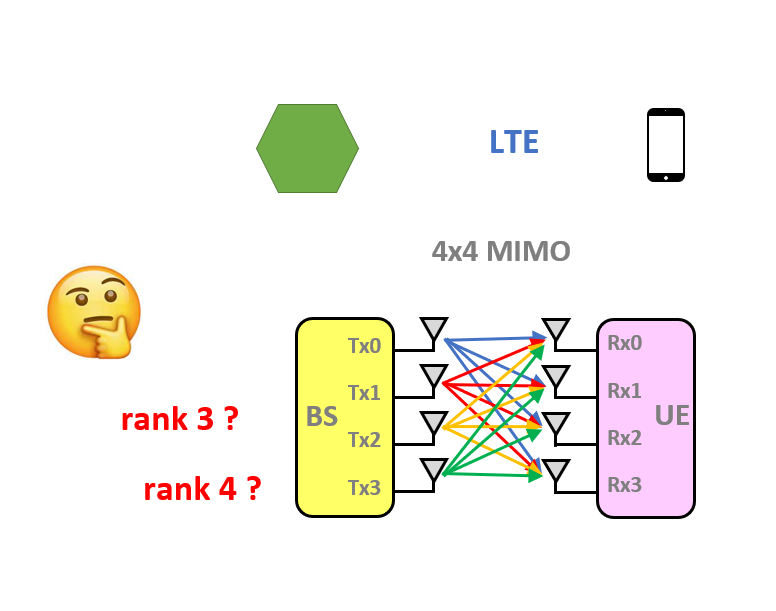

4T4R MIMO in LTE with no rank 3 and 4

Hi Experts,
When 4T4R MIMO configuration is set in 4G network and HW also is 4 feeders per antenna but no rank 4 and 3, what is problem?

Cell.TxRxMode = 4T4R
Cell.CrsPortNum = CRS_PORT_4
Cell.CrsPortMap = 4T4P_0321
CellDlschAlgo.MaxMimoRankPara = SW_MAX_RAN_4
eNodeBAlgoSwitch.CompatibilityCtrlSwitch = Tm3Tm4Max4LayerCtrlSwitch

When I check Dsp VSWr , it has value for feeders.

1 Like

Cell dlschalgo make as sw_rank4.
If your RRU support 4T4R.

1 Like

Yes, RRU support.

Yes, all settings is ok.

Please check connection RU - antenna physical ports.

Check MIMO cabling.
If wrong cabling you will not get rank 3.
Rank4 is anyway less than 5% of samples.

If we have RU issue, we should have VSWR alarm, no?
(No VSWR observed in the case).

port A should go to +45 and port B to -45 another antenna.
Similar you should check for C and D.

2 Likes

Thanks. :pray:

How we can check this?

Go on site and check cabling.
Or from OSS I think there is a way… (but i don’t know the commands)

In Ericsson for Radio 4415 we received no alarm. Some times we have just two configure port(on site issue). You can arrange audit to check it and also please check RF branches configuration

@Elnaz have your problem solved ?? I am also facing this issue

TM3TM4MAX4LAYERCTRLSWITCH@COMPATIBILITYCTRLSWITCH , this switch must be set to 1 . This is Enode B level switch , you can found it in ENODEBALGOSWITCH

Check Rssi of each port, it should not have main diversity issue.
Check if 2rru is cascaded and one rru is down.
Check for cross feeder
Check any abnormals for that cell

Most probably that’s 4T4R on Low band ?
Because there’s no devices support 4T4R on Low Band .

2 Likes

UE should be support 4 Receivers

1 Like

we had this cabling issue under antenna ( +45 , -45 ) and rank issue on our site .
Thanks

No device supports 4T4R in low band

we had this issue too and it solved

There is few devices support low band 4x4. Xperia 1 and Xperia 5 example support low band 4x4: Sony Xperia 1 (J9110) | 4G/5G Bands & Combos
