Massive MIMO (Multiple-Input Multiple-Output) is an advanced wireless communication technology that utilizes a large number of antennas at the base station to simultaneously serve multiple users. It is one of the key technologies employed in 5G and future wireless networks. The basic principle behind Massive MIMO is to leverage spatial multiplexing to enhance system capacity, improve spectral efficiency, and increase overall network performance.
Here’s a detailed explanation of Massive MIMO technology:
MIMO:
Before delving into Massive MIMO, it’s important to understand the concept of MIMO. MIMO refers to the use of multiple antennas at both the transmitter and receiver ends of a wireless communication system. By exploiting the spatial dimension, MIMO technology can transmit and receive multiple data streams simultaneously over the same frequency band, thereby increasing the data rate and system capacity.
Antenna Arrays:
In Massive MIMO, the base station is equipped with a large number of antennas, typically ranging from tens to hundreds. These antennas are arranged in an array, which can be configured in various ways, such as uniform linear arrays, uniform planar arrays, or even three-dimensional arrays.
Spatial Multiplexing:
The primary advantage of Massive MIMO lies in its ability to perform spatial multiplexing. Spatial multiplexing is a technique that exploits the multipath propagation environment to separate different user signals in the spatial domain. With a large number of antennas, the base station can serve multiple users simultaneously by transmitting independent data streams to each user in the same frequency and time resources.
Precoding and Beamforming:
To achieve spatial multiplexing, the base station employs precoding and beamforming techniques. Precoding involves processing the data streams at the transmitter to create optimal signal precursors for each user. Beamforming, on the other hand, focuses the transmitted signal energy in the direction of the intended user, enhancing the signal quality and reducing interference. These techniques are crucial in improving the overall signal-to-interference-plus-noise ratio (SINR) and mitigating the effects of multi-user interference.
Channel State Information (CSI):
In order to perform precoding and beamforming accurately, the base station requires knowledge of the channel state information. Massive MIMO systems utilize channel estimation techniques to estimate the channel conditions between the base station and each user. This information is used to optimize the precoding and beamforming weights, adapting them to changing channel conditions.
Interference Reduction:
Massive MIMO inherently provides interference reduction benefits. With a large number of antennas and spatially focused transmission, interference from other users can be significantly mitigated. The interference signals from different users tend to become orthogonal at the intended user’s location, leading to improved signal quality and system performance.
Pilot Contamination:
One challenge in Massive MIMO systems is pilot contamination, which occurs when multiple base stations reuse the same pilot sequences. This can degrade the channel estimation accuracy and, consequently, the overall system performance. To mitigate pilot contamination, advanced techniques such as non-orthogonal pilot allocation, pilot power control, and interference coordination schemes are employed.
Benefits of Massive MIMO:
The deployment of Massive MIMO technology offers several benefits, including:
- Increased Spectral Efficiency: By exploiting spatial multiplexing, Massive MIMO systems can serve multiple users concurrently, significantly increasing the spectral efficiency and data rates.
- Enhanced Coverage and Capacity: With a large number of antennas and beamforming capabilities, Massive MIMO systems can improve coverage, extend cell range, and increase the system capacity to accommodate more users.
- Energy Efficiency: Massive MIMO can improve energy efficiency by exploiting spatial diversity and reducing transmit power for individual users.
- Interference Reduction: The spatially focused transmission and interference reduction techniques employed in Massive MIMO can effectively mitigate interference from other users, resulting in improved signal quality and overall system performance.
Challenges and Considerations:
- Hardware Complexity: Implementing a large number of antennas at the base station requires advanced hardware and signal processing capabilities, which can increase complexity and cost.
- Channel Estimation: Accurate channel state information estimation is crucial for effective precoding and beamforming. However, channel estimation becomes challenging in Massive MIMO due to increased dimensions and pilot contamination issues.
- Backhaul Capacity: Massive MIMO systems generate a significant amount of data traffic that needs to be transmitted between the base station and the core network. Ensuring sufficient backhaul capacity is essential to support the increased data rates.
- Deployment Considerations: The deployment of Massive MIMO systems requires careful planning, considering factors such as antenna spacing, interference management, and site-specific characteristics to achieve optimal performance.
Applications:
- Mobile Broadband: Massive MIMO technology enhances the capacity and coverage of mobile broadband networks, enabling higher data rates and improved user experiences.
- Internet of Things (IoT): The ability of Massive MIMO to serve multiple users simultaneously makes it well-suited for IoT deployments where a large number of devices need to be connected efficiently.
- Virtual Reality (VR) and Augmented Reality (AR): VR and AR applications require high data rates and low latency. Massive MIMO can provide the necessary capacity and performance for seamless user experiences.
- Smart Cities: Massive MIMO can support the connectivity needs of smart city applications, such as smart grids, intelligent transportation systems, and remote monitoring, by accommodating a large number of devices and providing reliable communication.
Massive MIMO technology is a key enabler for 5G and future wireless networks. By utilizing a large number of antennas at the base station, it enables spatial multiplexing, enhances spectral efficiency, reduces interference, and improves overall system performance. While there are challenges to overcome, the benefits of Massive MIMO in terms of increased capacity, coverage, and energy efficiency make it a crucial technology for the evolving wireless communication landscape.
Here are a few additional points about Massive MIMO:

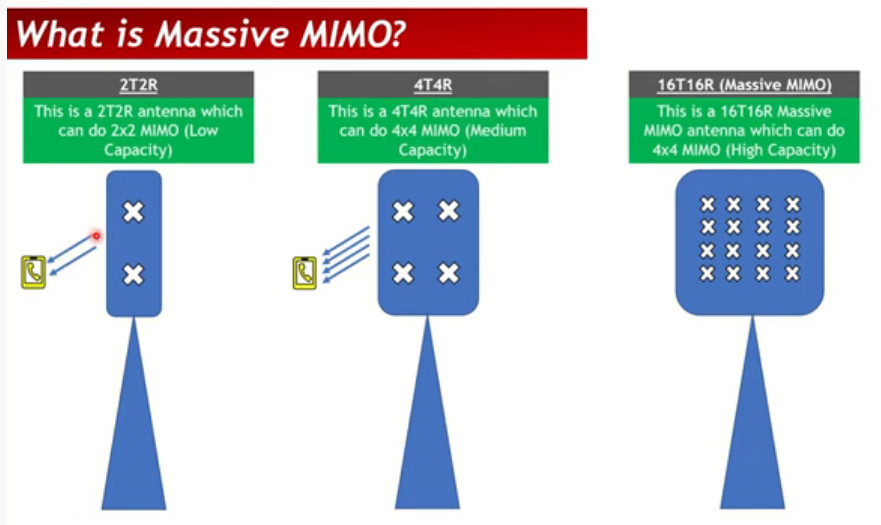

- Evolution from Traditional MIMO: Massive MIMO represents an evolution of traditional MIMO systems. Traditional MIMO typically employs a smaller number of antennas (2-4) at the base station and focuses on improving the link quality between individual users and the base station. In contrast, Massive MIMO goes beyond individual link optimization and aims to serve multiple users simultaneously using a large number of antennas.
- Capacity Scaling: One of the fundamental advantages of Massive MIMO is its capacity scaling property. As the number of antennas at the base station increases, the system capacity grows linearly with the number of antennas, theoretically allowing for an unlimited number of simultaneous users. This capacity scaling property makes Massive MIMO a promising technology for future wireless networks that need to accommodate the ever-increasing demand for data.
- Diversity Gain: Massive MIMO also offers diversity gain, which refers to the improvement in system performance by exploiting the independent fading of different antenna elements. The use of a large antenna array helps mitigate fading effects, such as multipath propagation, by capturing signals from multiple spatial directions. This enhances signal quality, increases coverage, and improves the overall reliability of the communication system.
- Hybrid Beamforming: Implementing fully digital beamforming in Massive MIMO systems may require a significant number of radio frequency (RF) chains, leading to increased complexity and cost. To address this, hybrid beamforming techniques are employed. Hybrid beamforming combines analog and digital beamforming, where the analog beamforming is performed at the RF level, and the digital beamforming is applied at the baseband level. This approach reduces the number of required RF chains while maintaining beamforming capabilities.
- Coordinated Multi-Point (CoMP) Transmission: Massive MIMO can be combined with CoMP transmission techniques to further enhance system performance. CoMP involves coordination between multiple base stations to jointly transmit and receive signals, optimizing coverage, reducing interference, and improving overall network capacity. Massive MIMO with CoMP can effectively address cell edge users’ performance and provide seamless connectivity across cell boundaries.
- Evolution to Intelligent MIMO: As wireless networks continue to evolve, Massive MIMO is expected to integrate with other advanced technologies such as machine learning, artificial intelligence, and network optimization algorithms. This evolution towards intelligent MIMO aims to optimize resource allocation, beamforming strategies, and interference management in real time, leveraging the capabilities of advanced analytics and intelligent algorithms.
Overall, Massive MIMO technology revolutionizes wireless communication by exploiting spatial multiplexing, employing a large number of antennas, and enhancing spectral efficiency and system capacity. With ongoing research and development, it is expected to play a vital role in the future of 5G and beyond, enabling higher data rates, improved network performance, and supporting a wide range of applications across various industries.
: Massive MIMO (Multiple Input Multiple Output) is an extension of MIMO technology, where a large number of antennas are used at the base station (gNodeB) to transmit and receive data from multiple user devices simultaneously
.
.
: Beamforming in Massive MIMO focuses the signal energy towards specific user devices, increasing signal strength and reducing interference from other users or devices. This results in better connection quality and faster data rates
.
: Massive MIMO uses spatial multiplexing to transmit multiple data streams simultaneously, over the same frequency band. This increases the network capacity, allowing it to serve more users at the same time without congestion
.
: With Massive MIMO, the coverage area of the network is improved due to the ability of the antennas to focus signal energy in specific directions. This allows for better signal quality even at the edges of the cell, providing a more consistent user experience
: With 5G and Massive MIMO, smart cities can manage traffic flow more efficiently, reducing congestion and optimizing public transportation
. Real-time data collected from sensors can be used for better city planning and to improve public services
.
: 5G networks with Massive MIMO can enable high-quality video consultations between doctors and patients, even in remote areas. This allows healthcare providers to offer prompt medical assistance, regardless of the patient’s location
