5G NR Bandwidth Part (BWP)

A Bandwidth Part is a contiguous set of physical resource blocks (PRBs) on a given carrier.

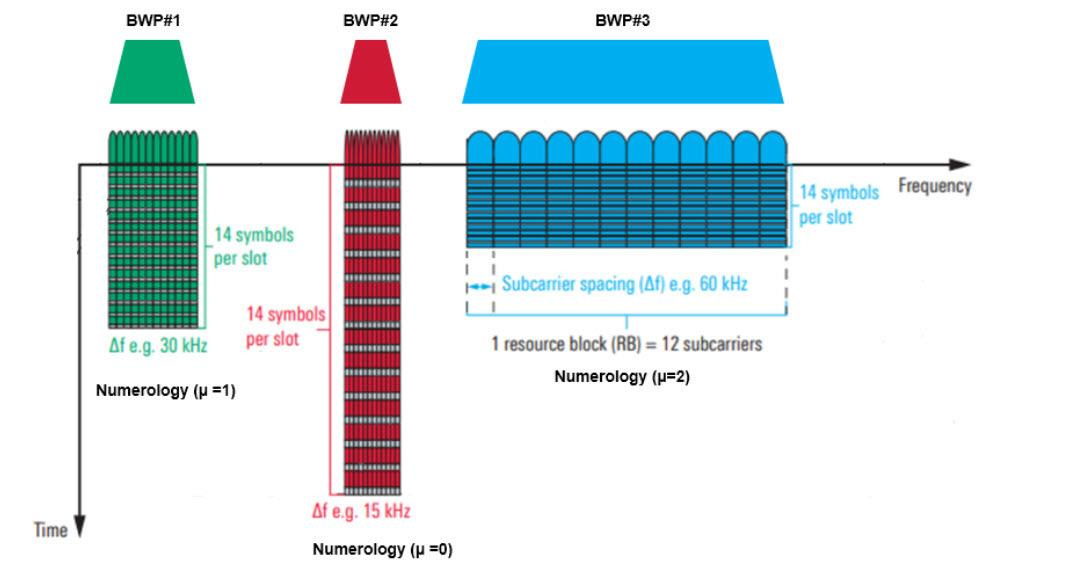

These RBs are selected from a contiguous subset of the common resource blocks for a given numerology (u). It is denoted by BWP. Each BWP defined for a numerology can have following three different parameters.

Subcarrier spacing
Symbol duration
Cyclic prefix (CP) length

Why BWP is Required?

A wider Bandwidth has direct impact on the peak and user experienced data rates, however users are not always demanding high data rate. The use of wide BW may imply higher idling power consumption both from RF and baseband signal processing perspectives. In regards to this, a new concept of BWP has been introduced for 5G-NR provides a means of operating UEs with smaller BW than the configured CBW, which makes NR an energy efficient solution despite the support of the wideband operation.

BWP concept reduce bandband processing requirement to transmit or receive narrow bandwidth

BWP enable RF-Baseband interface operation with a lower sampling rates

UE RF bandwidth adaptation can provide UE power saving at least if carrier bandwidth before adaptation is large.

#communication #users #technology #5G #4G #lte #nokia #huawei #ericsson

1 Like

Just a little bit of additional information about BWP. I hope my note can be of help:
http://www.sharetechnote.com/html/5G/5G_CarrrierBandwidthPart.html

1 Like

Hello,

Another additional information about BWP:

And also this one:

Bandwidth Parts

While DRX reduces UE activity in the time domain, BWP aims at reducing it in the frequency domain. With BWP, it becomes possible to constrain the UE to operate within a limited portion (i.e. a part) of the frequency bandwidth of the cell. Consider a voice service in the 3.5 GHz spectrum and a cell bandwidth of 100 MHz; obviously the data flow only requires a small fraction of the allocated spectrum.With BWP, the UE does not have to monitor the full channel bandwidth and can therefore reduce its power consumption.

Several BWPs can be configured by RRC, but only one is active at a time (the active BWP). The configured BWPs can differ in width (to save power in periods of low activity), in location within the frequency domain (to increase scheduling flexibility), and in the subcarrier spacing offered (to allow different services). Switching between configured BWPs for a UE can be triggered by RRC signaling, physical layer signaling (DCI), or by the MAC sublayer itself when an inactivity timer expires, or upon initiating a random access procedure.

We distinguish between two kinds of BWPs: the initial one and the default one. The initial BWP is the BWP selected by the MAC sublayer when performing a random access, or configured by the network for an SCell in CA. The default BWP is the BWP associated with the inactivity timer by the network: when an inactivity timer is configured, the expiry of the timer switches the active BWP to the default BWP.

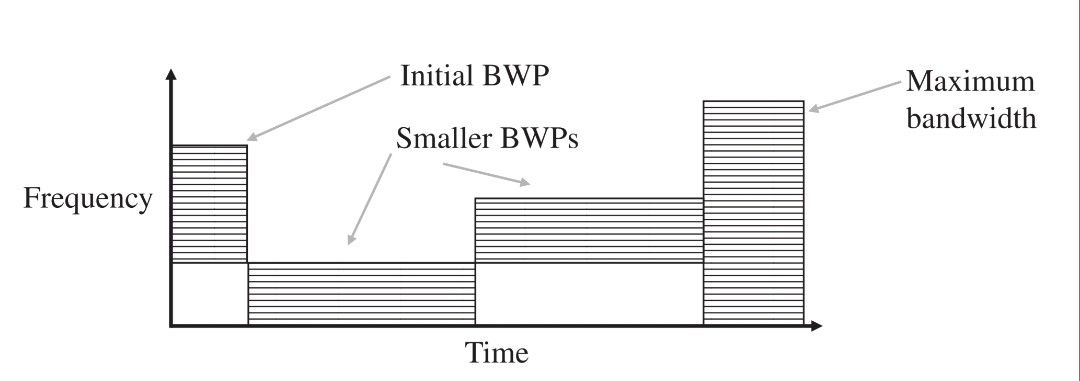

An example of BWP operation is depicted in Figure:

Credits: :point_down:

This is good for 5G stand alone to save battery on UE with small data.

Bandwidth Parts (BWP) is a contiguous set of physical resource blocks, selected from a contiguous subset of the common resource blocks for a given numerology (µ) on a given carrier. The width of a BWP may smaller than or equal to the cell bandwidth. Every bandwidth part has a direction (uplink or downlink) and occupies a contiguous range of common resource blocks with a particular subcarrier spacing. Every cell has an initial downlink bandwidth part and an initial uplink bandwidth part. Initial BWPs are used for initial access, for example by mobiles that are accessing a primary cell from the states of RRC_INACTIVE and RRC_IDLE.

LinkedIn: :point_down:

With the arrival of 5G, we’ve seen a big leap in network capabilities, especially in terms of bandwidth. While 4G/LTE can handle up to 20MHz of bandwidth, 5G can go up to 400MHz per carrier. However, not all devices, known as User Equipment (UE), can use such large bandwidths efficiently. To solve this problem, 5G introduces Bandwidth Parts (BWP).

  • What is BWP?

    • A BWP is a smaller section of the total available bandwidth within a 5G carrier. Instead of making devices use the entire bandwidth, which can be inefficient and drain battery power, the network can assign a specific BWP to a device based on what it needs at that moment. This makes the network more efficient and helps save power.
  • How do BWPs work?

    • Configuration via RRC Signaling: Networks configure multiple BWPs for both downloading (downlink) and uploading (uplink) using Radio Resource Control (RRC) messages.
    • Single Active BWP: Although up to four BWPs can be set up, only one is active at a time. The network switches BWPs based on the UE’s current needs, such as high data rates or power saving.
    • Dynamic Switching: BWPs can switch automatically using timers, network commands, or specific control signals (Downlink Control Information or DCI).
  • Benefits of BWP

    • Power Efficiency: Reduces battery consumption by allowing UEs to operate on narrower bandwidths when full capacity isn’t needed.
    • Optimized Resource Use: Ensures that network resources are allocated efficiently based on service demands, like streaming video or online gaming.
  • Technical Details and Use Cases

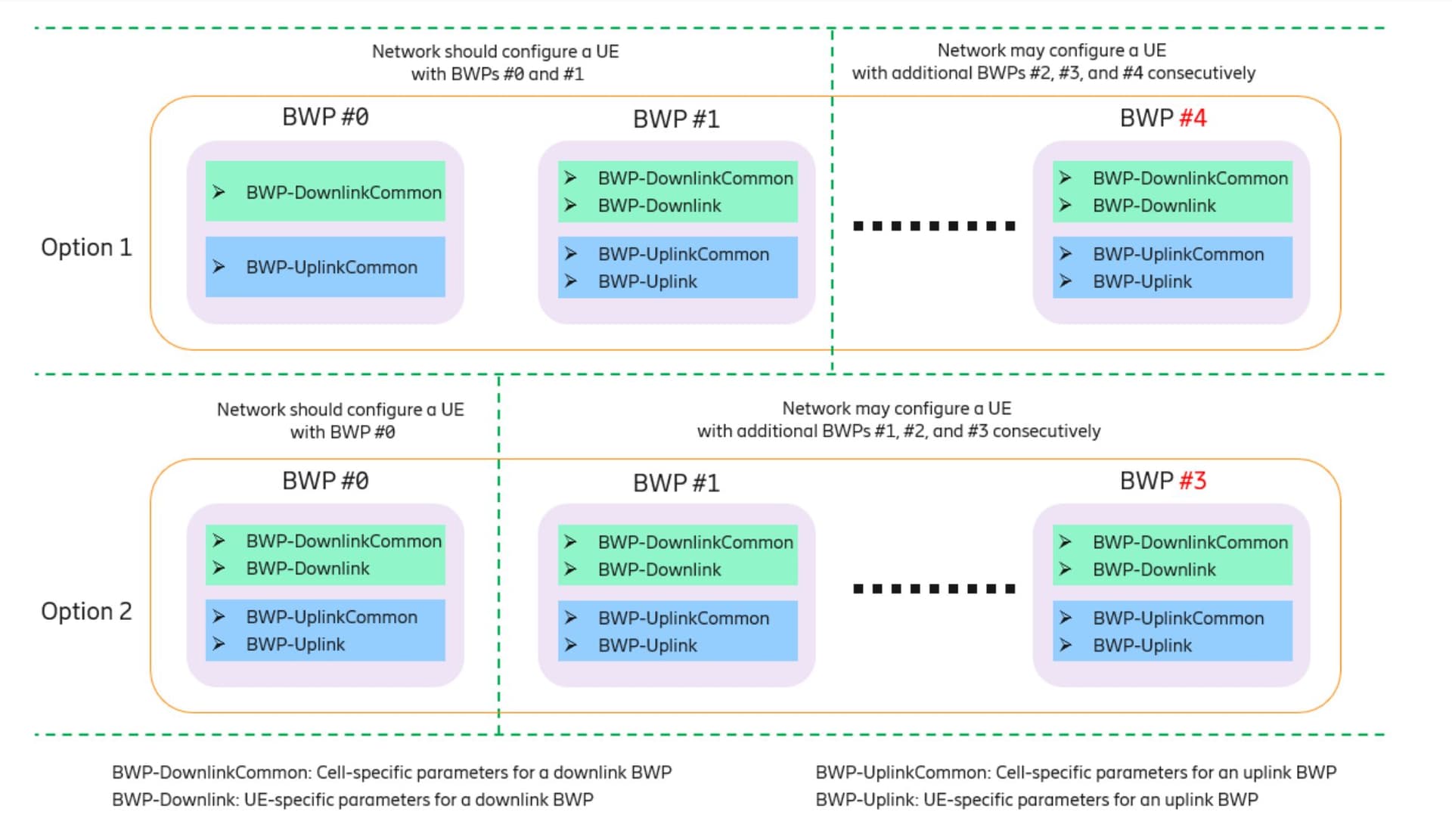

    • Multiple BWPs: Devices can be configured with up to four BWPs for downloading and uploading, but only one can be active at any time. Switching between BWPs is controlled by the network and can happen automatically based on device activity or network commands.

    • BWP Switching: The network uses special control signals, called Downlink Control Information (DCI), to manage when and how BWPs are switched. These signals include an indicator that tells the device which BWP to activate.

  • Practical Examples

    • Low-Bandwidth Devices: A simple device may use a narrow BWP to conserve power.
    • Variable Data Needs: A smartphone might switch to a wider BWP for video streaming and revert to a narrower one for browsing.
    • Different Services: Supports diverse applications by adjusting bandwidth according to real-time requirements.
  • Why BWP is Important?

    • BWPs enhance 5G’s flexibility and efficiency, ensuring that devices use just the right amount of bandwidth. This leads to better battery life for users and more effective use of the network’s resources.

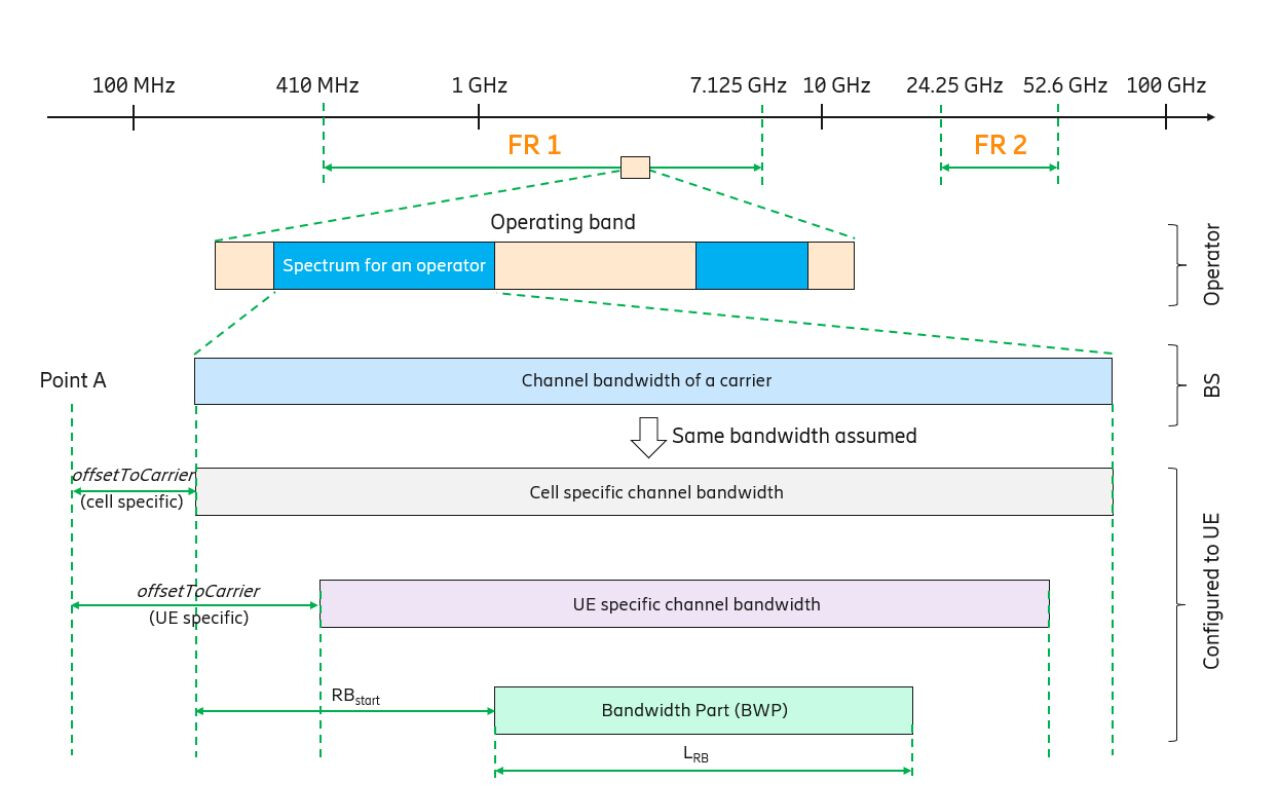

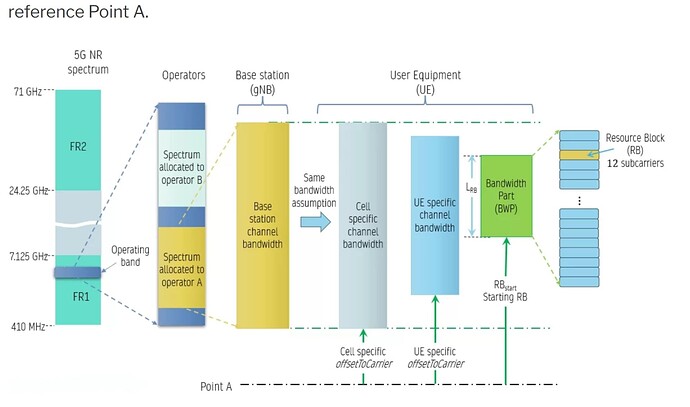

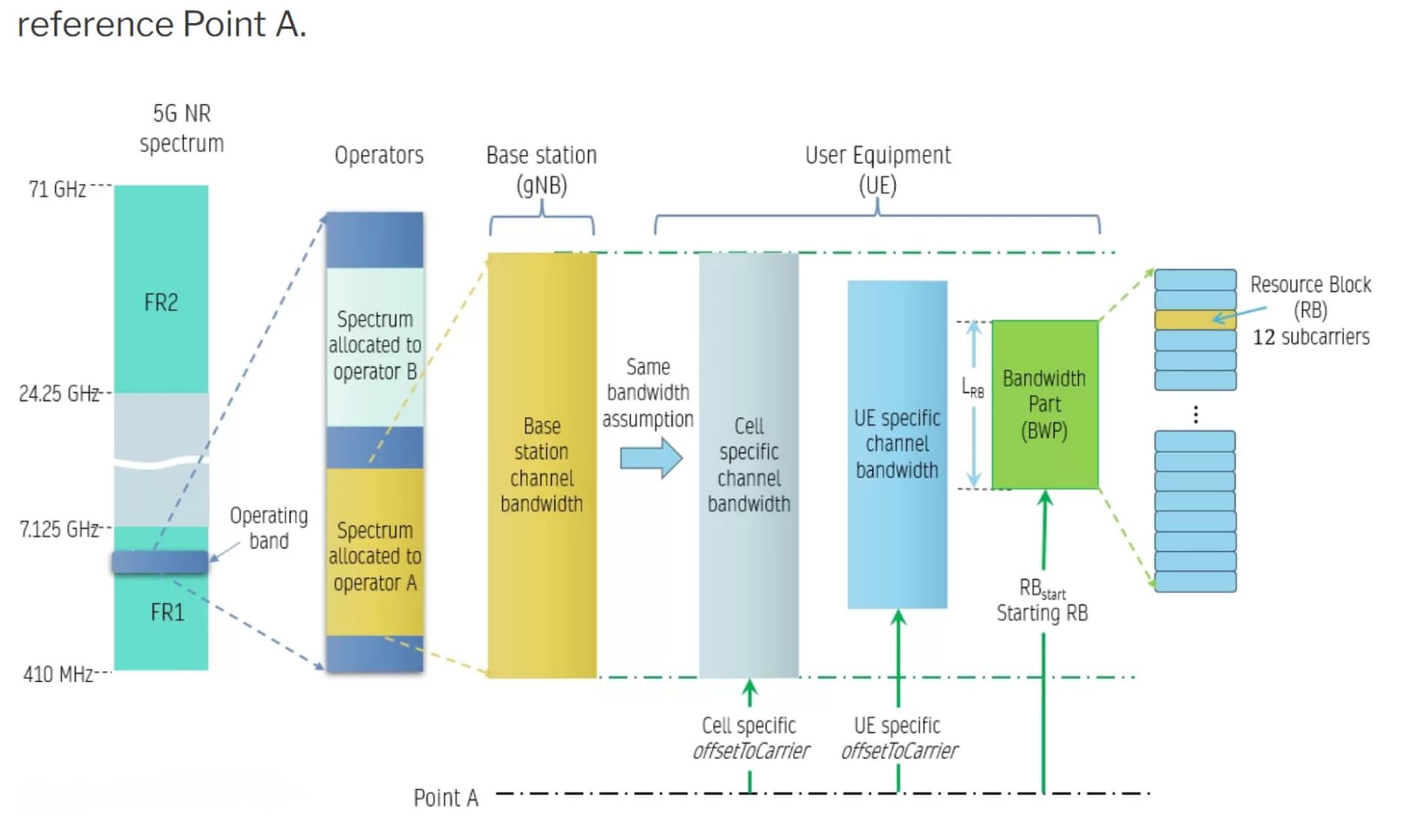

Note: Point A indicates a common reference point for resource block grids and is obtained from broadcast, so located in the center of subcarrier number 0 in CRB number 0 in each RG

That’s it.
