Antenna required for 5G devices

[TelecomLover]

Hi Experts.

Does anyone know which spec explicitly mentions antennas required for 5G devices?

Should be 4?

Admin note: this post was updated with image below.

[RFSpecialist]

I found this on internet: The standard requires 4 RX (reception) antennas for 5G bands with 3.5 GHz (TDD) as well as n7 2.6 GHz (FDD), n38 2.6 GHz (TDD) and n41 2.5 GHz (TDD).

Maybe not for all bands 4 RX antenna are needed for 5G.

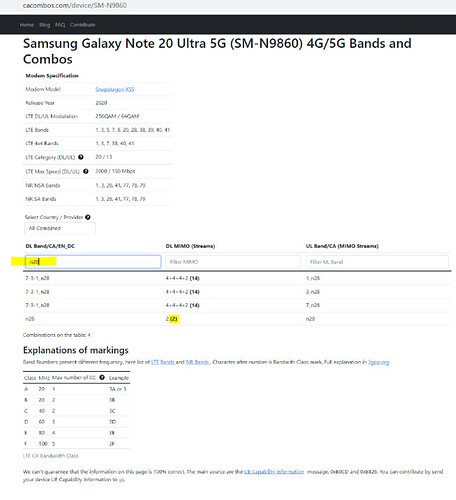

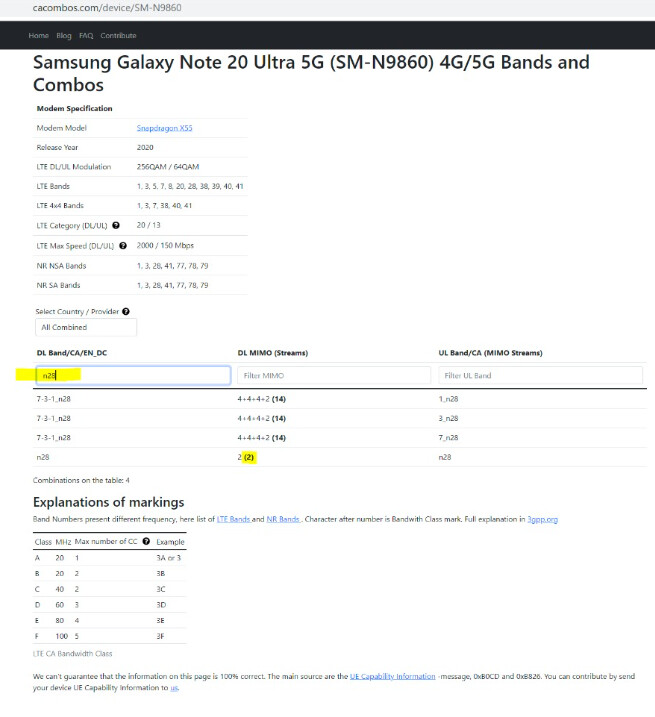

For example Samsung Galaxy Note 20 Ultra 5G in n28 works only with 2 layers:

[iman.mohammadi]

@RFSpecialist

For example Samsung Galaxy Note 20 Ultra 5G in n28 works only with 2 layers

Mostly bands under 1 Ghz are 2 layer at UE side for both LTE and 5G.

[TelecomLover]

@RFSpecialist

I found this on internet: The standard requires 4 RX (reception) antennas for 5G bands with 3.5 GHz (TDD) as well as n7 2.6 GHz (FDD), n38 2.6 GHz (TDD) and n41 2.5 GHz (TDD).

Thank you. Do you know the spec #?

[RFSpecialist]

Try this:

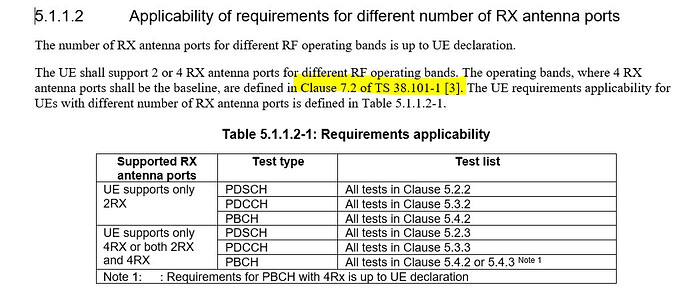

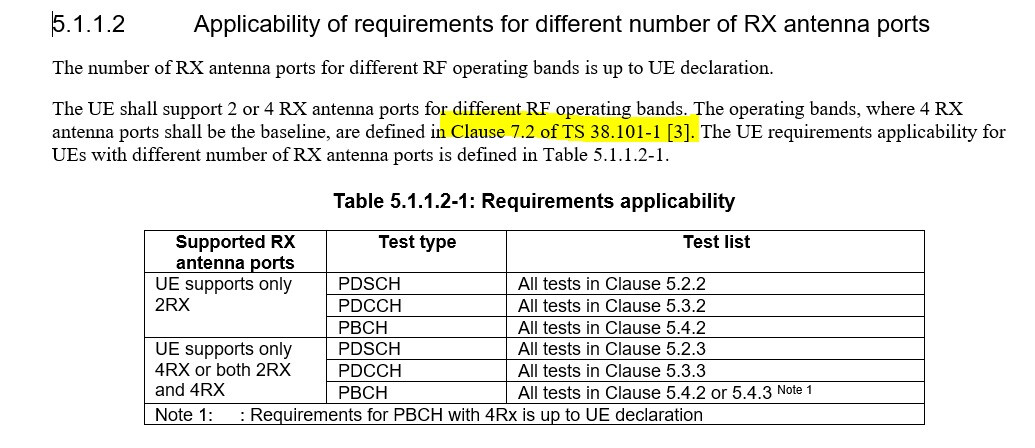

Picture above is from 38.521

@TelecomLover

Thank you. Do you know the spec #?

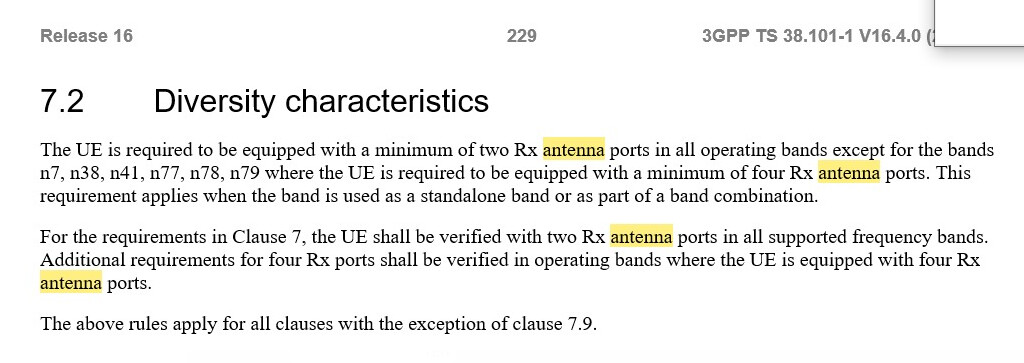

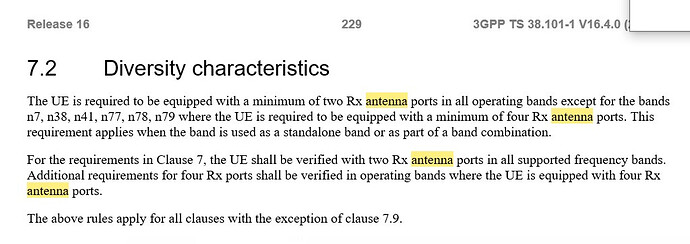

Here it is @TelecomLover:
