Different types of measurement in 5G

5G NR
1

Hello Experts,
Someone can help me to understand difference between different types of measurement in 5G?

Measurement on SSB for SS-RSRP, SS-RSRQ, SS-SINR, CSI-RSRP, CSI-RSRQ, CSI-SINR and RSSI.

Admin note: this post was updated with image below.

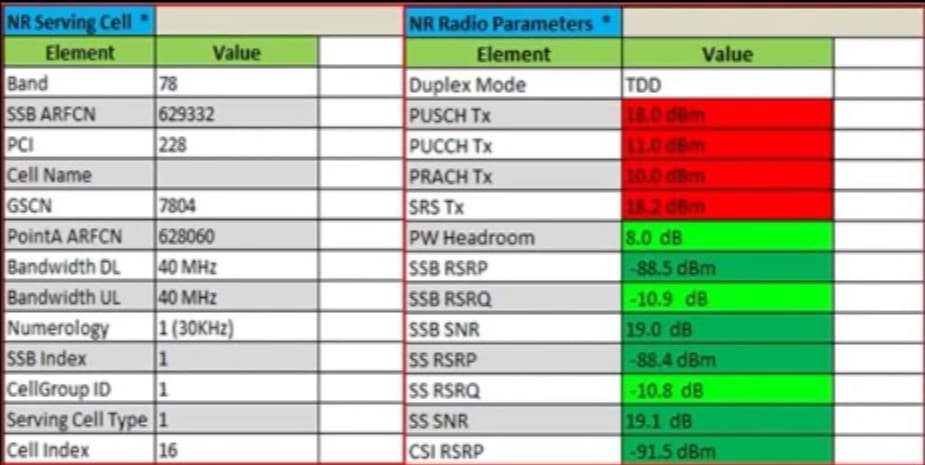

SSB RSRP, SS RSRP, CSI RSRP
SSB RSRP, SS RSRP, CSI RSRP925×465 45.4 KB

2

Refer to TS 38.215.

3

Hi All.

What is the difference between SSB RSRP, SS RSRP, CSI RSRP?

Same for RSRQ & SINR?

May anyone explain all parameter?

SSB RSRP, SS RSRP, CSI RSRP
SSB RSRP, SS RSRP, CSI RSRP925×465 45.4 KB

4

Seems:

  • SSB RSRP at L3
  • SS RSRP at L1
  • CSI RSRP for csi-rs beams for coarse beams if enabled
5

Thanks.

But why we check all layers of RSRP in 5G while it was only CSI in 4G?

6

For 4G it’s from reference signal… CSI reported by UE to network, its channel state information consist of CQI, RI, PMI.

7

ss-RSRP represents the average power received from a single Resource Element allocated lo the Secondary Synchronisation Signal.
synchronisation Signal - Reference Signal Received Power’ (SS-RSRP) measurements are used for cell selection, cell reselection, power control calculations, mobility procedures and beam management.

CSI-RSRP represents the average power received from a single Resource Element allocated to the CSI Reference Signal
‘CSI Reference Signal Received Power’ (CSI-RSRP) mcasuremen1ts arc used for connected mode mobility, power control calculations, and beam management.
