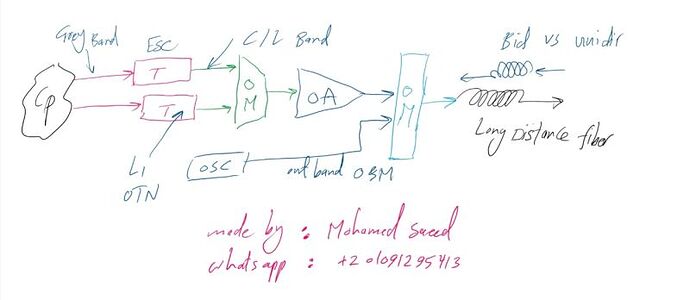

CP (Customer Premises): Refers to customer equipment, which could belong to a telecom network, data center, or oil and gas company.
-
T (Transponder): A module that converts colorless signals to colored signals in the C or L band. It maps the client signal into OTN (Optical Transport Network) frames.
-
ESC (Electrical Supervision Channel): A signal embedded within the OTN frame for in-band management. This is transported through bytes called GCC (General Communication Channels) located at the ODU (Optical Data Unit) and OTU (Optical Transport Unit) layers.
-
DWDM Bands: Commonly used bands in Dense Wavelength Division Multiplexing include C, L, Extended C, Super C, and Super L bands.
-
OM/OD (Optical Multiplexer/Demultiplexer): Devices used to combine (multiplexer) or distribute (demultiplexer) WDM channels.
-
OA (Optical Amplifiers): Used to extend the reach of optical signals. Common types include EDFA (Erbium-Doped Fiber Amplifier) and Raman amplifiers.
-
FIU (Fiber Interface Unit): A multiplexer that combines the OSC (Optical Supervision Channel) signal with traffic-carrying C band signals onto the line fiber.
-
OSC (Optical Supervision Channel): A separate signal used to carry operations and maintenance (O&M) information on a distinct optical wavelength.
-
L1 and L0 Layers: Refers to the processing of OTN frames, which is done electrically at L1, whereas DWDM operates optically at L0.
-
Unidirectional vs. Bidirectional Communication:
- Unidirectional: Uses two separate fiber cables with channel reuse.
- Bidirectional: Uses a single fiber cable with different wavelengths for communication.
