Failed to check the power parameter configurations of the cell

4G LTE
,
1

Hi Experts.

I’m using AAU5711a (FDD 1 carrier) with Pa=-3 / Pb=1 and RS=9.7dBm.

Using these settings I’ve 34.5dBm (2.81W).

Why cannot I use Pa=-3 / Pb=1 and RS=12.2dBm (5W)?

When I try to change it shows me error.

MOD PDSCHCFG:LOCALCELLID=171,REFERENCESIGNALPWR=122;
…
RETCODE = 0 Operation succeeded.

Prompt information
------------------
[0]Configuration data activating failed:(ErrorCode = 1977761760)Failed to check the power parameter configurations of the cell.

2

Maybe the max out is 6.2


3

I am using this calculation, so it indicates is possible.


4

Sometimes it doesnot give alarm but if the cell goes down it won’t come up

5

Massive MIMO Power calculator is different.

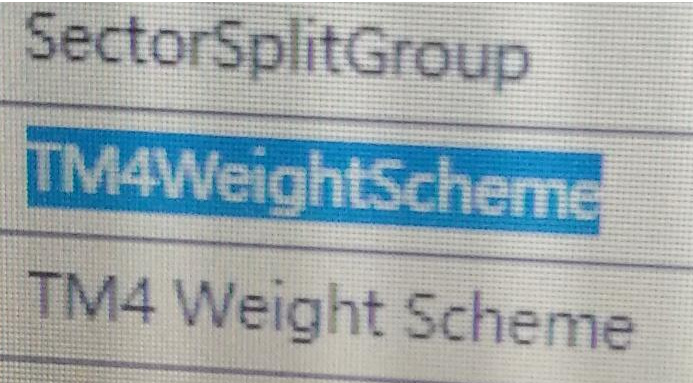

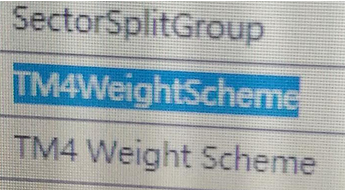

What value is TM4 Weight Scheme in Sector Split MO?

image.jpg693×383 111 KB

6

It is DEFAULT_MODE.

7

Change it to Coverage 1, and observe.
Note: Are you in eRAN 15?

8

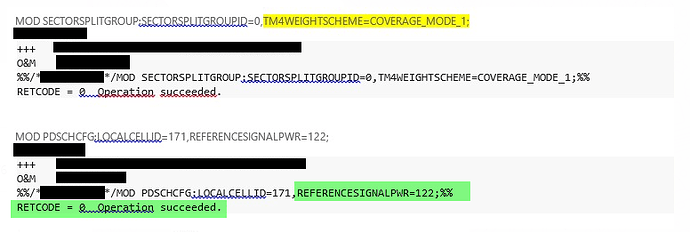

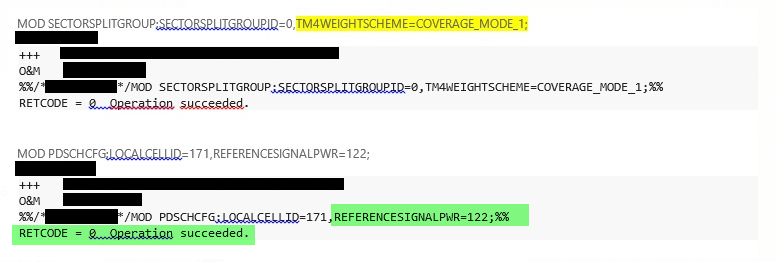

I have changed it.
And it worked! Thank You my friend.

image.png776×262 66.1 KB

And yes, it’s eRAN15.
Which RF impact changing default to Coverage 1?

1 Like
9

As far as in my knowledge, In eRAN13 by default its Coverage 1
When eran upgrades to 15 then it’s change to default_mode.

So for rs power / coverage increase depending on scenario you should select proper TM4 weight scheme.
