Ever had buffering ruin your binge session?
Or lag cost you a game-winning moment?
It’s frustrating when Wi-Fi slows down, but here’s the kicker - it’s not always your signal strength. Sometimes, it’s how Wi-Fi handles data.
Before Wi-Fi 4 (802.11n), Wi-Fi sent data one frame at a time - ike a courier delivering letters one by one instead of bundling them into a package. The result?
Overhead overload (Too many control messages slowing things down)
Increased latency (Slower gaming responses, glitchy video calls)
Wasted airtime (Network congestion even when bandwidth is available)
Then, Wi-Fi got smarter… with Frame Aggregation.
Frame Aggregation = FASTER Wi-Fi
Think of it like Amazon deliveries: Would you rather get 10 separate boxes, or one package with everything inside?
Wi-Fi now bundles multiple frames into a single transmission, making networks faster, smoother, and more efficient.

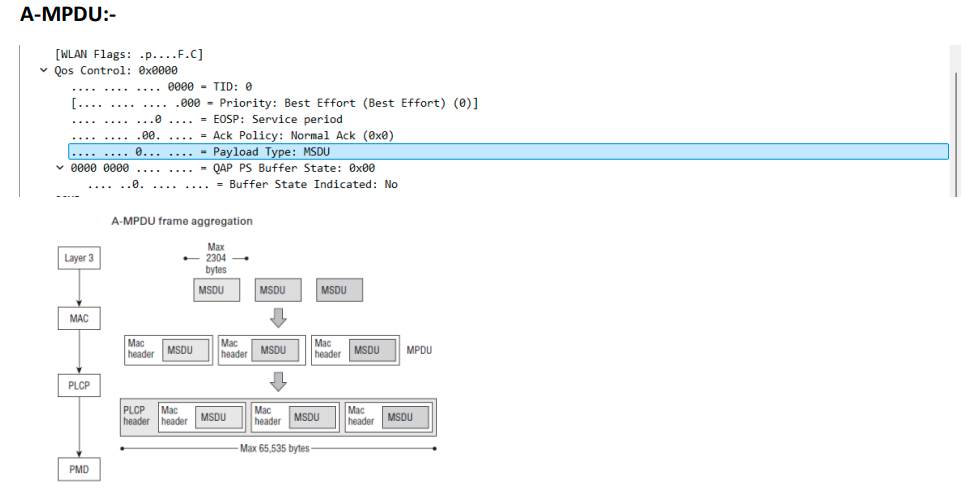

A-MPDU (Aggregated MAC Protocol Data Unit) – The Smart Stacker
Sends multiple frames together but keeps separate headers
If one frame is corrupted, only that frame is retransmitted (not the whole batch!)
Reliable & widely used in real-world Wi-Fi
Max aggregation size:
• Wi-Fi 4 & 5 (802.11n/ac): ~64 KB
• Wi-Fi 6/6E (802.11ax): ~1 MB
• Wi-Fi 7 (802.11be): ~4 MB

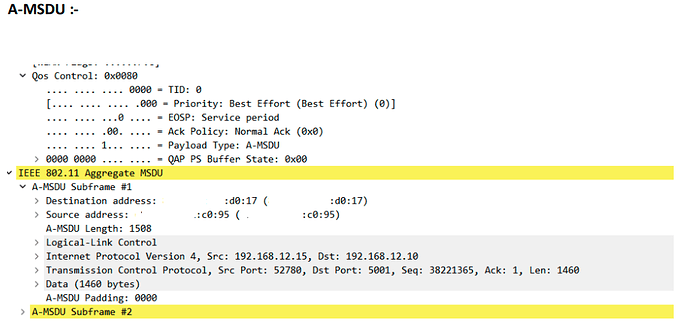

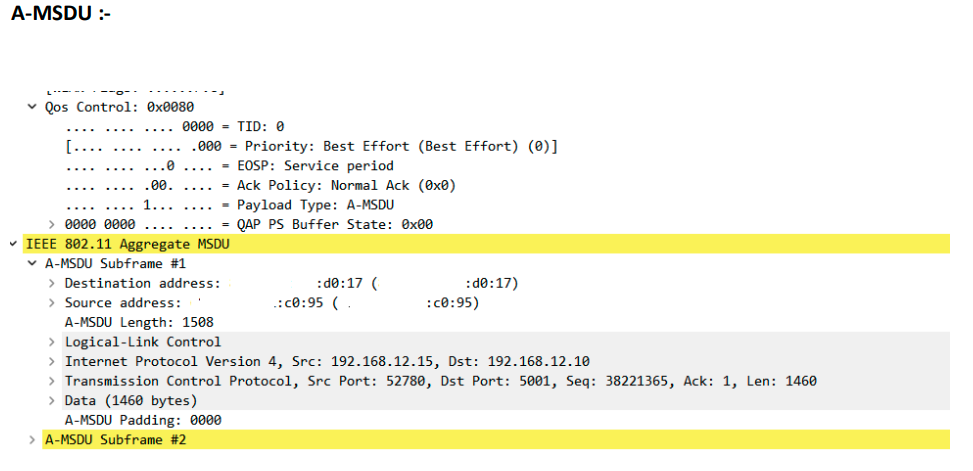

A-MSDU (Aggregated MAC Service Data Unit) – The Speed Demon
Combines multiple frames into one BIG frame, reducing overhead
Downside? If one part of the frame is lost, the entire frame gets dropped
Best for low-latency, high-speed traffic like video streaming
Max aggregation size:
• Wi-Fi 4/5 (802.11n/ac): 7935 bytes
• Wi-Fi 6 (802.11ax): 11,454 bytes
Why Should You Care? Real-World Impact
Netflix, YouTube, & 4K Streaming
– Less buffering, smoother playback
Online Gaming
– Lower latency, fewer disconnects, faster reactions
Zoom, Teams, VoIP
– Clearer calls, no awkward delays or dropouts
Fun Fact: Frame Aggregation can boost Wi-Fi efficiency by 2-3x! That’s why modern networks can handle more devices without slowing down.
Tuning Frame Aggregation: Can You Control It?
Most routers and APs automatically enable Frame Aggregation, but some advanced settings let you tweak it.
A-MPDU Aggregation: Enabling it improves reliability, but excessive aggregation can cause minor latency.
A-MSDU Aggregation: Best for high-throughput applications, but not ideal for latencysensitive traffic.
Pro Tip: If you’re tweaking AP settings, test different values based on your network needs. Gaming? Prioritize A-MPDU. Streaming? A-MSDU might help!
Have you ever changed Frame Aggregation settings on your AP or client?
Did it help or hurt performance?
