Hi Experts,
pucch format 1 dtx for one of the TDD carrier is >10%
pucch format 3 dtx >20% most of the time.
What could be reason of this? Our Call drop rate %1 but I think that dtx rate can impact DL thrpughput significantly especially in TDD_TDD CA.
Thanks
Perhaps P0_pucch is too low
Agree. ponominal pucch value for TDD is -108 thats p0NominalPucchF1F3 incase long pucch is used.
I plan to change it to -90 actually but how to judge the optimum value from KPIs?
I have pathloss , UE rssi, UE sinr kpis for PUCCH
i increased po nominal pucch to -90 and saw the impact on PUCCH RSSI and SINR immediately improved but dtx has still the same trend, any other idea?
Try these if applicable
- Disable CDRX
- configure UL data traffic to use SCG
Thanks for the comments @O.B Let me give you more info:
this issue occurred after i enabled tdd_tdd(n78c) CA rollout, pucchformat3 dtx degraded.
-disable cdrx (i will try)
- ul data split- already configured but will tune thresholds according to path-loss and enable dft-s-ofdm.
I reckon, i have to decrease a bit the A1 threshold for 2nd carrier addition from -110 to -105 as this issue occured after ca activation. More csi report resources have to be allocated for 2nd carrier which is pucch, the problem has to be related with pucch resources as it is a DTX in my opinion.
It could be incorrect behavior from either gnb or ue
I had a case previously in which the network configured pucch resource that the UE used but was expecting another pucch resource resulting in the network declaring DTX
I have UE logs , can u eleborate a bit how to check if pucch resource allocated properly for UE ? @O.B
Thanks
Pucch configuration is in RRC messages
Actual pucch resource used is in L1 messages. If you have QXDM log, you should be able to get it
The problem could be on network side so network L1 trace may be needed
This is RRC message:
cqi-ReportConfig-r10
cqi-ReportAperiodic-r10
CQI-ReportAperiodic-r10 : setup
cqi-ReportModeAperiodic-r10 : rm31
aperiodicCSI-Trigger-r10
trigger1-r10 : 10000000
[0 ] : 1
[1 ] : 0
[2 ] : 0
[3 ] : 0
[4 ] : 0
[5 ] : 0
[6 ] : 0
[7 ] : 0
trigger2-r10 : 01000000
[0 ] : 0
[1 ] : 1
[2 ] : 0
[3 ] : 0
[4 ] : 0
[5 ] : 0
[6 ] : 0
[7 ] : 0
nomPDSCH-RS-EPRE-Offset : 0
cqi-ReportPeriodic-r10
CQI-ReportPeriodic-r10 : setup
cqi-PUCCH-ResourceIndex-r10 : 0
cqi-pmi-ConfigIndex : 78
cqi-FormatIndicatorPeriodic-r10 : widebandCQI-r10
ri-ConfigIndex : 1
simultaneousAckNackAndCQI : true
pucch-ConfigDedicated-v1020
pucch-Format-r10
pucch-Format-r10 : channelSelection-r10
n1PUCCH-AN-CS-r10
n1PUCCH-AN-CS-r10 : setup
n1PUCCH-AN-CS-List-r10 :
[0 ] :
N1PUCCH-AN-CS-r10 :
[0 ] : 1
[1 ] : 3
[2 ] : 5
[3 ] : 6
[1 ] :
N1PUCCH-AN-CS-r10 :
[0 ] : 55
[1 ] : 57
[2 ] : 59
[3 ] : 60
And this is the 5G MAC UL PHY channel scheduled report:
Blocks :
[0 ] :
Code : FULL_PKT
Length : 328
[1 ] :
Code : AGC
Length : 80
AGC Sub Packet
Variant ID : 0
Version : 5
Log Header
Log2 Slot To Unit Slot : 2
Fractional Unit Slot Number : 48
SFN : 864
Carrier Index : 0
Log Size : 76
AGC Carrier
Rx Bit0 : 1
Rx Bit1 : 1
Rx Bit2 : 0
Rx Bit3 : 0
AGC Rx Sub6 :
[0 ] :
Current LNA Gain State : 3
Inband RSSI : -29.75 dBm
[1 ] :
Current LNA Gain State : 2
Inband RSSI : -38.63 dBm
[2 ] :
Code : AGC
Length : 80
AGC Sub Packet
Variant ID : 0
Version : 5
Log Header
Log2 Slot To Unit Slot : 2
Fractional Unit Slot Number : 48
SFN : 864
Carrier Index : 1
Log Size : 76
AGC Carrier
Rx Bit0 : 1
Rx Bit1 : 1
Rx Bit2 : 0
Rx Bit3 : 0
AGC Rx Sub6 :
[0 ] :
Current LNA Gain State : 3
Inband RSSI : -32.00 dBm
[1 ] :
Current LNA Gain State : 2
Inband RSSI : -33.13 dBm
[3 ] :
Code : AGC
Length : 80
AGC Sub Packet
Variant ID : 0
Version : 5
Log Header
Log2 Slot To Unit Slot : 2
Fractional Unit Slot Number : 52
SFN : 864
Carrier Index : 0
Log Size : 76
AGC Carrier
Rx Bit0 : 1
Rx Bit1 : 1
Rx Bit2 : 0
Rx Bit3 : 0
AGC Rx Sub6 :
[0 ] :
Current LNA Gain State : 3
Inband RSSI : -29.75 dBm
[1 ] :
Current LNA Gain State : 2
Inband RSSI : -38.63 dBm
[4 ] :
Code : AGC
Length : 80
AGC Sub Packet
Variant ID : 0
Version : 5
Log Header
Log2 Slot To Unit Slot : 2
Fractional Unit Slot Number : 52
SFN : 864
Carrier Index : 1
Log Size : 76
AGC Carrier
Rx Bit0 : 1
Rx Bit1 : 1
Rx Bit2 : 0
Rx Bit3 : 0
AGC Rx Sub6 :
[0 ] :
Current LNA Gain State : 3
Inband RSSI : -32.00 dBm
[1 ] :
Current LNA Gain State : 2
Inband RSSI : -33.13 dBm
[5 ] :
Code : PAD_PKT
Length : 4
Do you see anything abnormal? @O.B
@LordGm
Does not seem like correct messages
For example RRC has lots of r10 so it is LTE not 5G
The L1 message does not have PUCCH information
Check this , from UE side only message includes pucch info is 5G MAC UL PHY channel scheduled report. If you know in which message we can find that info, please share it.
L3 is given below.
RRC message: pucch resources (14:02:10.945)
pucch-ConfigCommon
SetupRelease : setup
Setup
pucch-GroupHopping : neither
hoppingId : 303
p0-nominal : -90
bwp-Dedicated
pucch-Config
SetupRelease : setup
Setup
resourceSetToAddModList
resourceSetToAddModList :
[0 ] :
pucch-ResourceSetId : 0
resourceList :
[0 ] : 0
[1 ] : 1
[1 ] :
pucch-ResourceSetId : 1
resourceList :
[0 ] : 10
[1 ] : 11
resourceToAddModList
resourceToAddModList :
[0 ] :
pucch-ResourceId : 0
startingPRB : 271
intraSlotFrequencyHopping: enabled
secondHopPRB : 1
format : format1
format1
initialCyclicShift : 2
nrofSymbols : 14
startingSymbolIndex : 0
timeDomainOCC : 0
[1 ] :
pucch-ResourceId : 1
startingPRB : 1
intraSlotFrequencyHopping: enabled
secondHopPRB : 271
format : format1
format1
initialCyclicShift : 2
nrofSymbols : 14
startingSymbolIndex : 0
timeDomainOCC : 0
[2 ] :
pucch-ResourceId : 8
startingPRB : 272
intraSlotFrequencyHopping: enabled
secondHopPRB : 0
format : format1
format1
initialCyclicShift : 6
nrofSymbols : 14
startingSymbolIndex : 0
timeDomainOCC : 0
[3 ] :
pucch-ResourceId : 9
startingPRB : 2
intraSlotFrequencyHopping: enabled
secondHopPRB : 270
format : format3
format3
nrofPRBs : 1
nrofSymbols : 14
startingSymbolIndex : 0
[4 ] :
pucch-ResourceId : 10
startingPRB : 271
intraSlotFrequencyHopping: enabled
secondHopPRB : 1
format : format3
format3
nrofPRBs : 1
nrofSymbols : 14
startingSymbolIndex : 0
[5 ] :
pucch-ResourceId : 11
startingPRB : 1
intraSlotFrequencyHopping: enabled
secondHopPRB : 271
format : format3
format3
nrofPRBs : 1
nrofSymbols : 14
startingSymbolIndex : 0
[6 ] :
pucch-ResourceId : 18
startingPRB : 270
intraSlotFrequencyHopping: enabled
secondHopPRB : 2
format : format3
format3
nrofPRBs : 1
nrofSymbols : 14
startingSymbolIndex : 0
format1
SetupRelease : setup
Setup
format3
SetupRelease : setup
Setup
maxCodeRate : zeroDot25
simultaneousHARQ-ACK-CSI: true
schedulingRequestResourceToAddModList
schedulingRequestResourceToAddModList :
[0 ] :
schedulingRequestResourceId : 1
schedulingRequestID : 0
periodicityAndOffset
periodicityAndOffset : sl80
sl80 : 39
resource : 8
dl-DataToUL-ACK
dl-DataToUL-ACK :
[0 ] : 4
[1 ] : 5
[2 ] : 6
[3 ] : 7
[4 ] : 8
[5 ] : 0
[6 ] : 0
[7 ] : 0
pucch-PowerControl
deltaF-PUCCH-f1 : 0
deltaF-PUCCH-f3 : 0
p0-Set
p0-Set :
[0 ] :
p0-PUCCH-Id : 1
p0-PUCCH-Value : 0
NR 5G MAC UL Physical Channel Schedule Report
Time : 14:02:11.113
Length : 124
Log Code (Hex) : 0xB883
HW Timestamp : (43330687.75 ms) 12:02:10.688
Version : 196625 (v3.17)
MAC Version
Minor : 17
Major : 3
Padding : 0
Num Records : 2
Records :
[0 ] :
Slot : 4
Numerology : 30 kHz
Frame : 311
Num Carrier : 1
Carriers :
[0 ] :
Carrier ID : 0
RNTI Type : C_RNTI
Phychan Bit Mask :
PUCCH
PUCCH Data
NumPucch : 1
PerPucchData :
[0 ] :
PUCCH Format : PucchFormatF1
UCI Request BMask :
ACK_NACK_RPT
Start symbol : 0
Num Symbols : 14
Starting RB : 271
REL16 DMRS EN : 0
Dual Pol Status : 0
Num RB : 1
Freq Hopping Flag : HopModeGroup
Second Hop RB : 1
Num HARQ ACK Bits : 2
Num SR Bits : 0
pad_w2 : 0
Num UCI P1 Bits : 2
Num UCI P2 Bits : 0
PadW3 : 8
M0 : 2
Time OCC Index : 0
I DMRS : 0
DFT OCC Length : 0
DFT OCC Index : 0
pad_w4 : 0
[1 ] :
Slot : 9
Numerology : 30 kHz
Frame : 311
Num Carrier : 1
Carriers :
[0 ] :
Carrier ID : 0
RNTI Type : C_RNTI
Phychan Bit Mask :
PUSCH
PUSCH Data
Tx Type : NEW_TX
L2 new TB : True
HARQ ID : 8
RV Index : 0
MCS : 26
Tx Mode : SISO
RB Start : 123
Num RBs : 3
BWP ID : 1
Start Symbol : 0
Num Symbols : 14
Tx Slot Offset : 2
UCI Request Mask :
ACK_NACK_RPT
Mcs Table : Qam256
TB Size (bytes) : 388
DMRS Symbol Bitmask : 2052
Freq Hop Flag : 0
Mapping Type : TypeA
DMRS Config Type : 0
Data Scrambling Selection : FromCfg
PTRS EN : 1
DMRS Ports[0] : 0
DMRS Ports[1] : 15
DMRS Add Pos : 1
RNTI Value : 17560
TPMI : 31
RA Type : 1
RB Start Hop : 0
CDM Groups : 2
DmrsScramblingSelection : Nscid0
DMRS PTRS Assoc : 0
Dual Pol Status : 0
Beta Offset Ind : 0
Num HARQ ACK Bits : 3
Num CSF P1 Bits : 0
Num CSF P2 Bits : 0
SRS Res Ind : 2
REL16 DMRS EN : 0
Modulation : 256 QAM
Transform Precoding : 0
Code Rate : 1833
CB Size : 3168
K Prime Value : 3120
ZC Value : 144
Num CBs : 1
RBG Bitmap : N/A
Number of Gap RadioBearers : 0
@LordGm
Yes, these look like the correct messages to analyze.
Hi, I dont see any abnormal behaviour on these messages at least RRC and L1.
Pucch format 3 dtx rate was %5 now it is 10% after CA activation so it is difficult to find the problematic signalling.
and I tried to increase PUCCH power, nothing changed.
I also tuned the Ul data split thresholds and enabled dft-s-ofdm. No impact at all.
Last step is to decrease 5G CA secondary carrier A1 addition threshold from -110 to -105. Lets see I will share the results here.

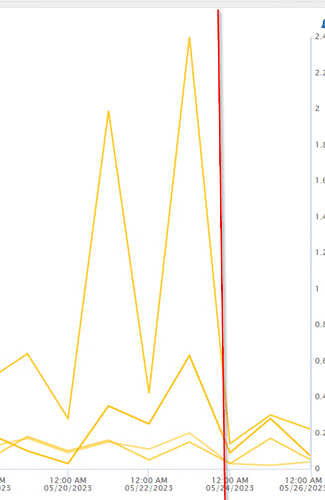

I solved the issue. I optimized the uldata split thresholds and tuned the Open loop control parameters like nominalpucch, deltaf1/f3 , I would say using different thresholds for TDD and FDD are recommended.
The parameters have been tweaked are given below:
rlresumeSinrthreshold
rlosinrthreshold
p0nominalPUCCH
P0nominalPUCCHF1F3
case closed.
Hi What values did u set for P0nominal PUCCH and F1F3
