How much power (EIRP) will be radiated from the antenna when RRU (4 Port) feeds 20W power from each port to antenna?

RAN
,
1

Hello Dears.

How much power (EIRP) will be radiated from the antenna when RRU (4 Port) feeds 20W power from each port to antenna?

Admin note: this post was updated with image below.

EIRP
EIRP1280×720 159 KB

2

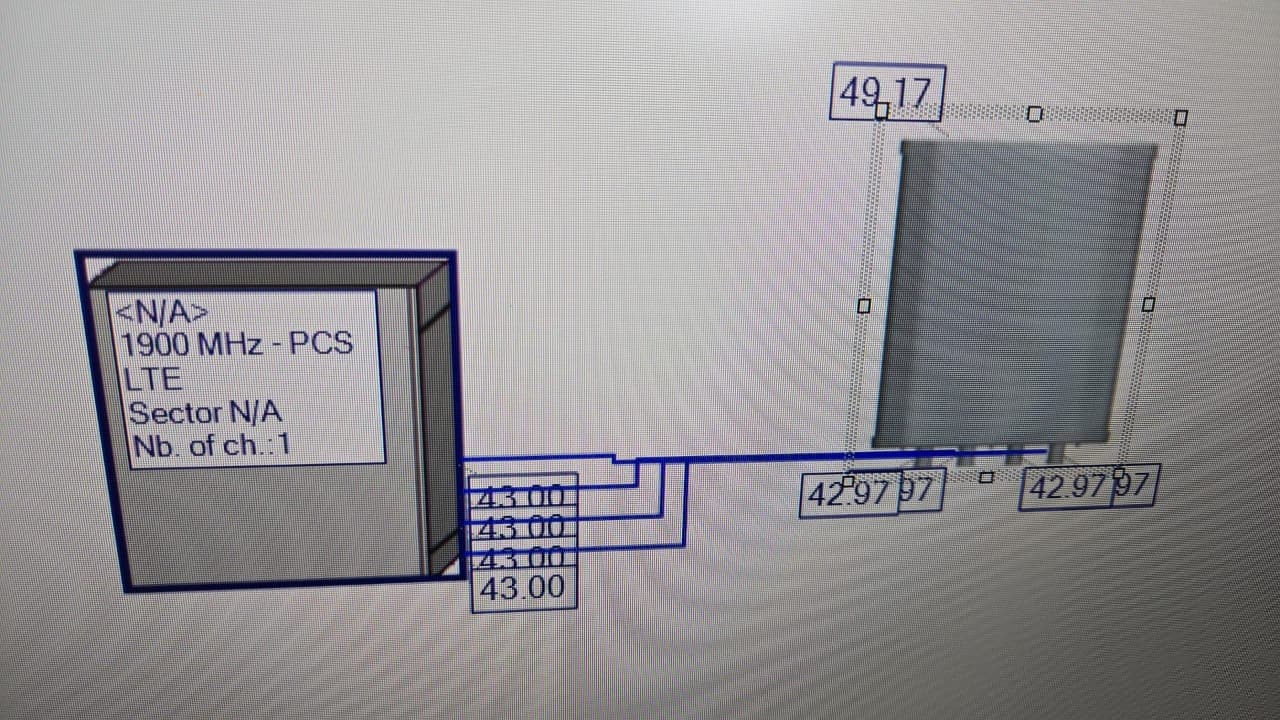

Here’s an example from iBwave:

EIRP
EIRP1280×720 159 KB

3

You mean 49.17 dbm will be radiated?

4

Based on the antenna gain.

It’s radio power + antenna gain - losses ( cables, connectors…)
