Hi All,
How to know UE supports SA or not in Network?
I think i found:
3GPP TS 36.306 version 15.4.0 Release 15 103 ETSI TS 136 306 V15.4.0 (2019-05)
4.3.34.3 supportedBandListNR-SA-r15
This field indicates whether UE supports standalone NR, as specified in TS 38.331 [32], and includes the supported NR
bands as defined in TS 38.101-1 [33] and TS 38.101-2 [34].
Course: https://www.etsi.org/deliver/etsi_ts/136300_136399/136306/15.04.00_60/ts_136306v150400p.pdf
1 Like

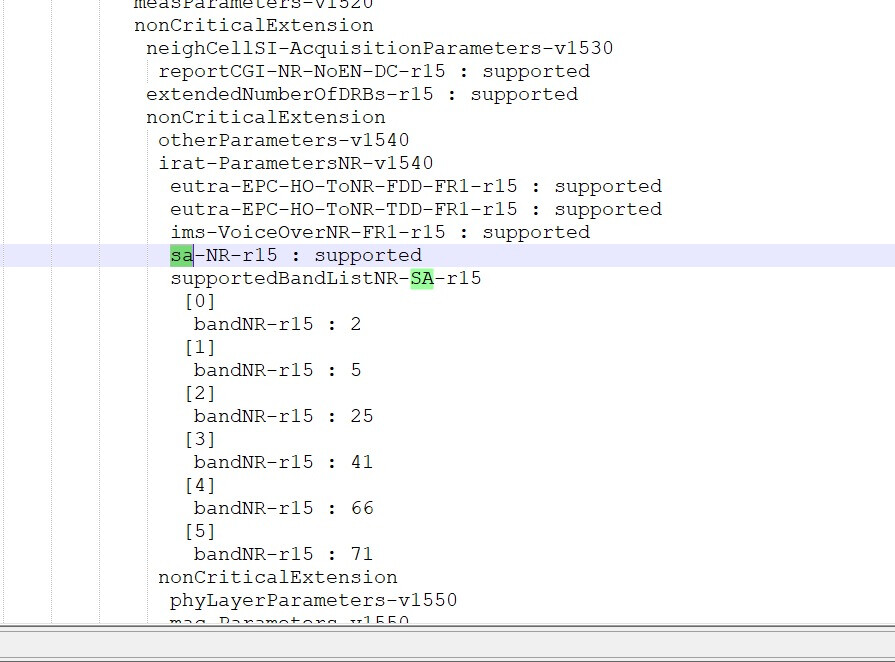

I also found in actual UE capability as below
If supportedBandListNR is there in UE capability-> UE support SA for those band
If only rf-ParametersMRDC is there, and not supportedBandListNR, the UE support NSA only between LTE and NR, SA not supported here.
Even reporting supportedBandListNR is not enough. This is the indication of per band capability which is common to SA & NSA. UE needs to report the corresponding SA combos to indicate the support of SA to network. Network will use these combos to redirect/HO the UE to SA network.
Hi pradeep, what do you mean please by saying “SA combos”? I didn’t understand the meaning / implicitly meaning of combos here …
Appreciated if you can explain.

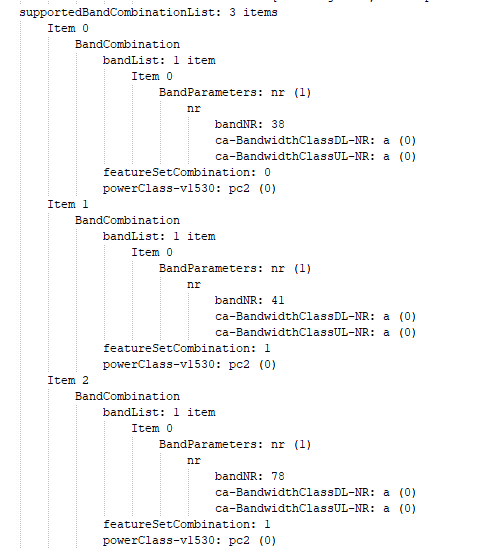

UE must report in UE Capability Information Message (nr) supportedBandCombinationList. This list depends how your network request it too. Example this UE support n38, n41 and n78 SA.
On https://cacombos.com website you can find different devices support different 4G and 5G combinations. If your UE missing on site would be nice if you can submit your device log to complete listing.
Hello All.
Where can we see if the UE supports 5G SA in logs?
Thanks!
But can we know by anyway in MIB SIB?
SIB and MIB are from network side.
For checking UE side only way is “UE Capability information”.
1 Like
No way in MIB or SIB.
In 5G NSA there is only MIB and maybe SIB1 but no other SIBs.
In SA there are other SIBs for 5G.

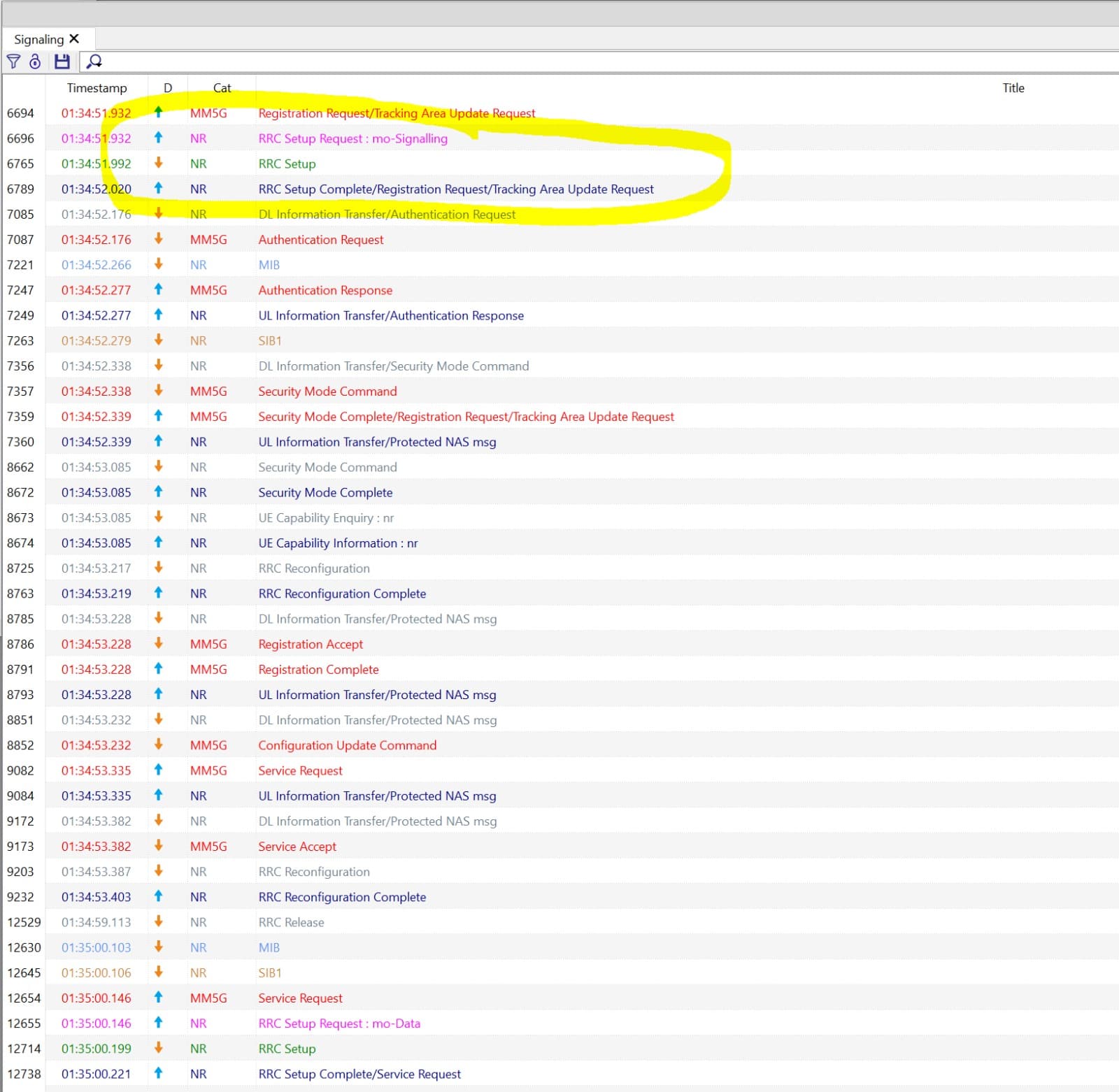

If you see RRC connection request on NR after MIB /SIB1 this is SA.
RRC Setup request.
Right! Thanks @RFSpecialist !
From sib1 content different from LTE we can also judge as it’s mostly seen in SA networks having spcell structure.
SIB1 may also be present in NSA 5G.
Yes, if CGI reporting required there.
But content is short as compared to SA.
