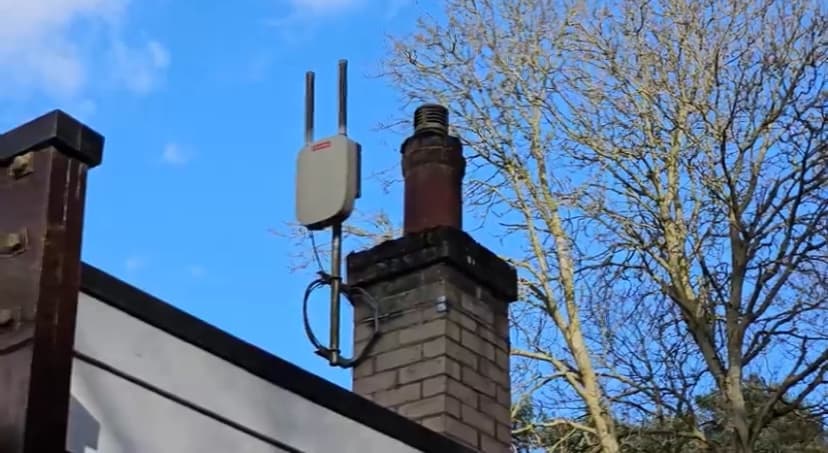

Anyone guess what anntena is this?
Is it a Dual band mono-tube antenna?
That is a WiFi antenna for high capacity.
Or masive mini on WiFi.
The band color is for WiFi.
Is it a tri-sector?
Ah i see it 5Ghz.
14 ports.

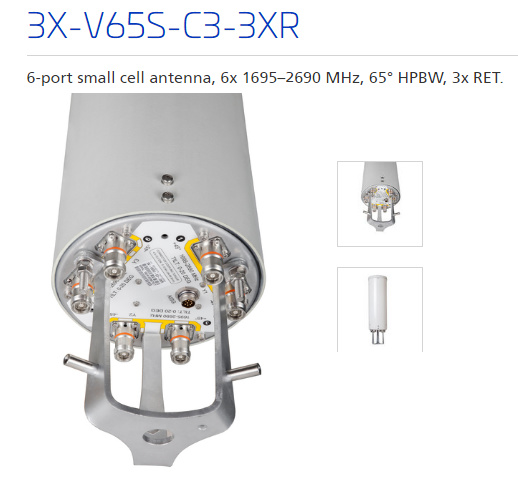

I guess it is this: 3X-V65S-C3-3XR
Single band and used for small cells for outdoor
Features and Benefits
- Three DualPol® antennas under one radome
- Fully integrated flange mounting system for ease of installation
- Aesthetically pleasing concealment solution for tough zoning areas
- 4.3-10 connector significantly improves PIM consistency and smaller footprint on antenna bottom
This can be useful:
Seems a repeater to me… Or may be WiFi antenna.

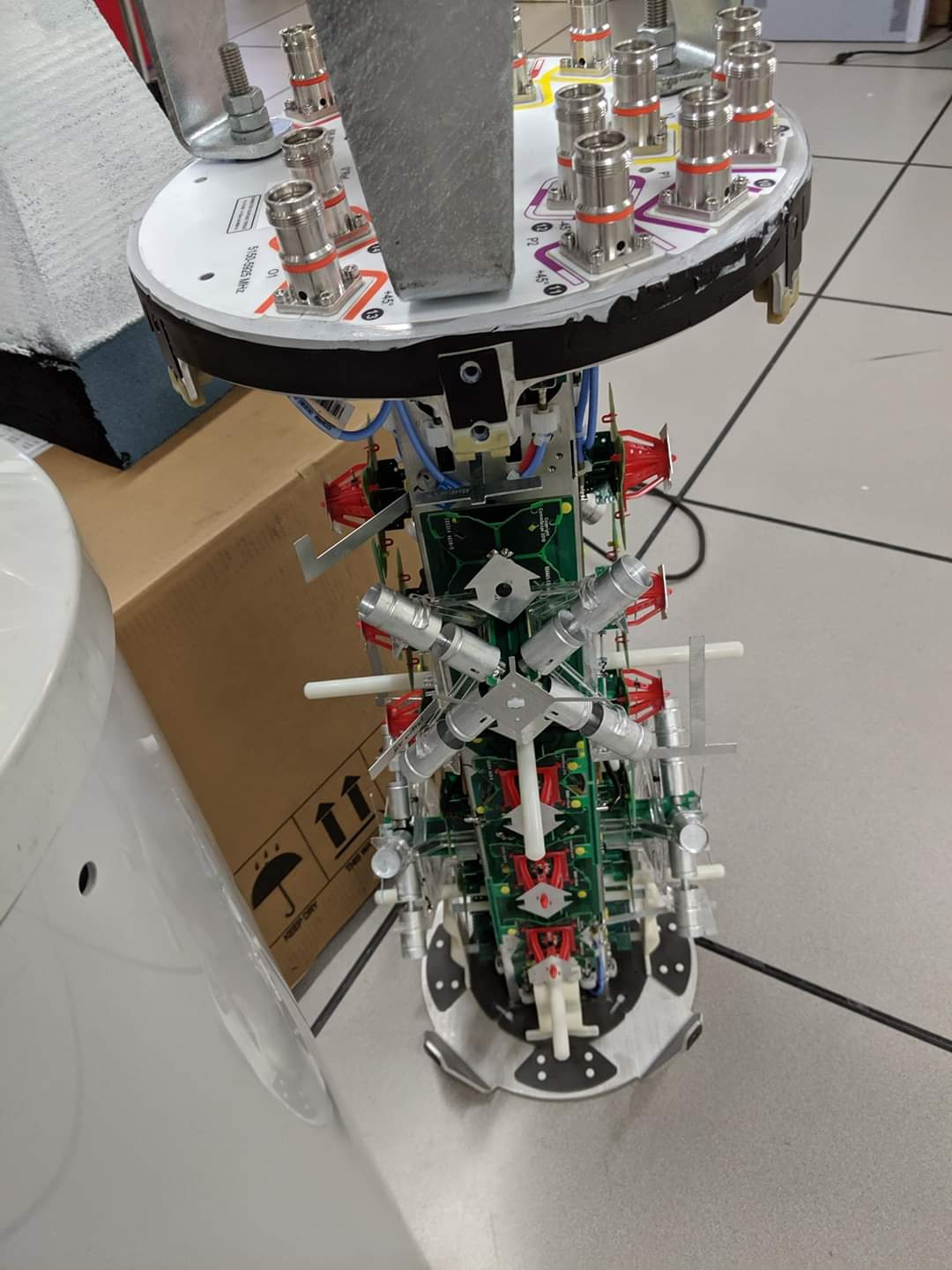

I Count 4 Purple, 4 Yellow, 2 Red and 2 Violet RF connectors.
Normally Red is lowband (700-900MHz), Yellow is medband (1700-2700MHz), Purple is highband (3500-3700MHz) and Orange is WiFi (5000-5900MHz).

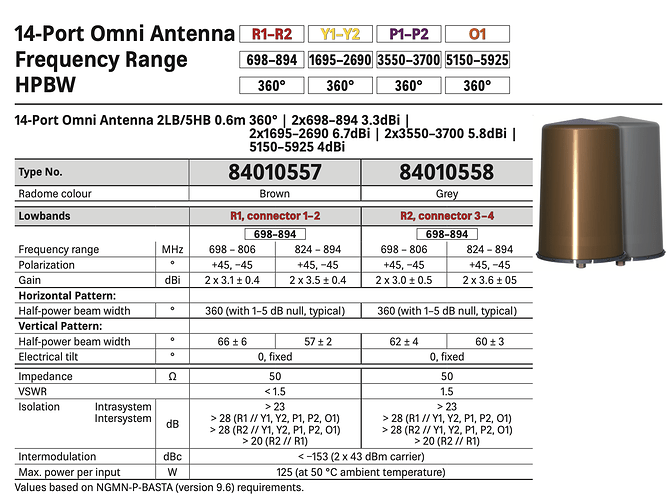

So this looks a lot like a Small Cell omni antenna. Similar to Kathrein 84010557. Except Kathrein 84010557 should have 4 red RF connectors.
