NR Frequency FR2-2

5G NR
,
1

At 3GPP release 17.6 new band in FR2 was introduced which band number is n263, supports up to 2000 MHz bandwidth, up to 960 KHz SCS and its unlicensed.

For sure 5G make difference with LTE at such frequencies and bandwidth but how can treat with challenges like coverage for a 2000 MHz carrier at 60 GHz and … ? let’s see😎

Source: TS 38.104 V17.6

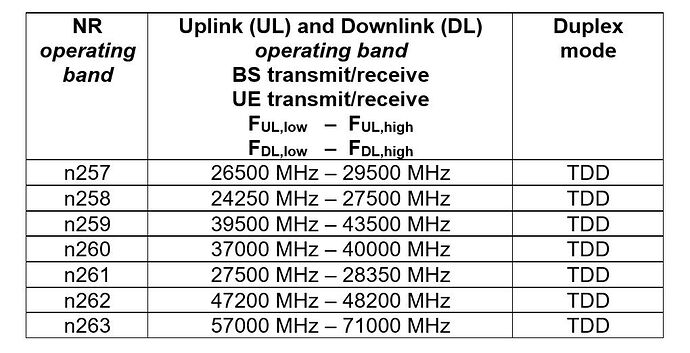

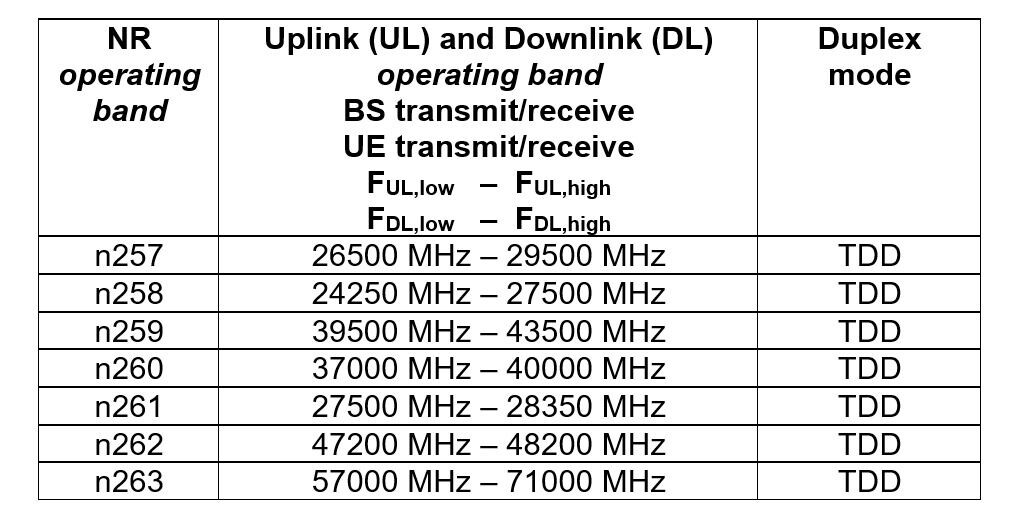

NR Frequency FR2-2 a
NR Frequency FR2-2 a1020×522 94.5 KB

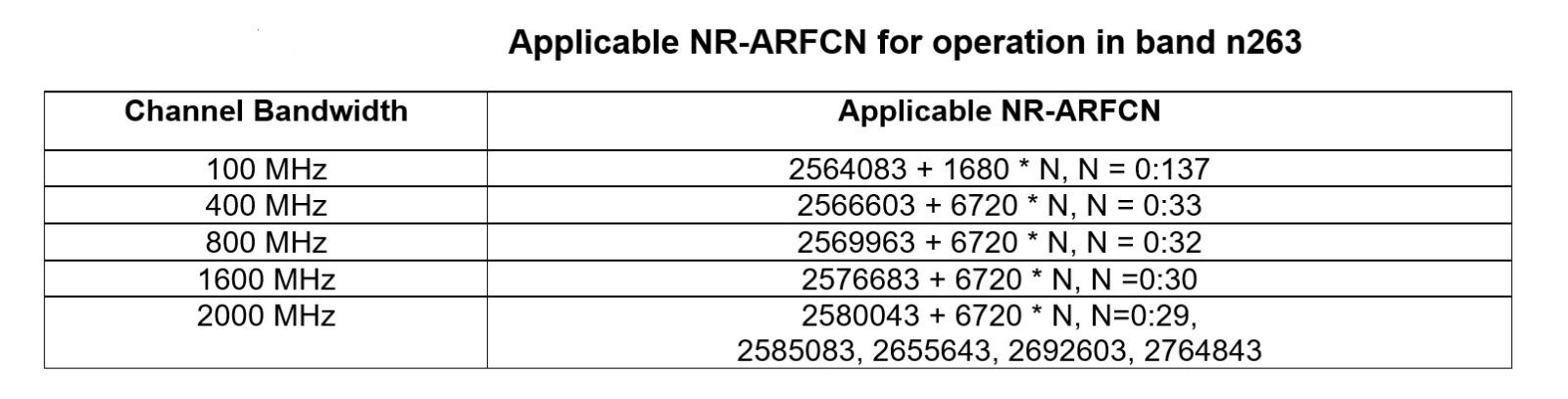

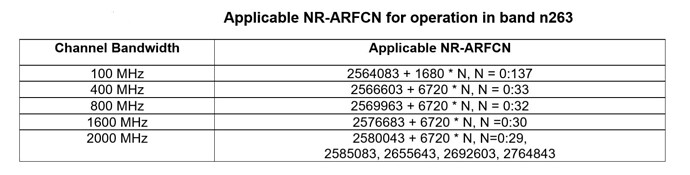

NR Frequency FR2-2 b
NR Frequency FR2-2 b1600×407 76.7 KB

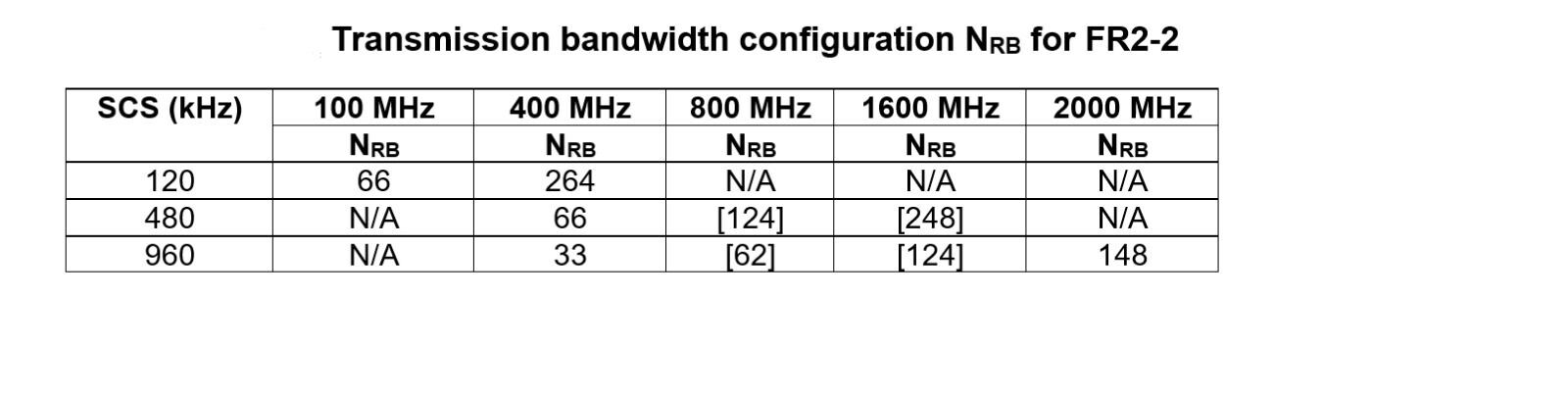

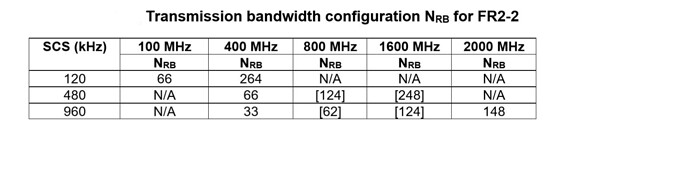

NR Frequency FR2-2 c
NR Frequency FR2-2 c1600×407 54.8 KB

LinkedIn:

1 Like
