PDSCH Power Config Tool doubt

4G LTE
1

Hello Experts.

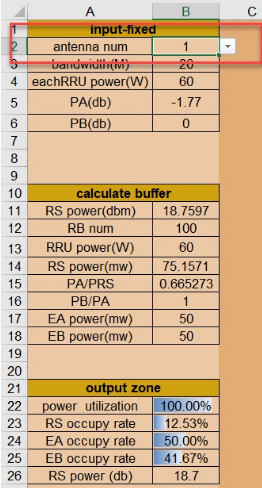

Does “antenna num” means antenna port?
Or is it actual physical antenna number?
LTE power


2

Follows some calculators:

Huawei PDSCH Power Config Tool V1.1.xlsx (124.3 KB)
Huawei PDSCH Power Config Tool V1.4 updated.xlsx (409.6 KB)
Huawei PDSCH Power Config Tool V1.4.xlsx (271.7 KB)

2 Likes
3

It is not antenna physical number.
Ultra Massive MIMO of Huawei in 5G can be up to 380 antenna elements but only 32 csi-rs ports.
Same applies for LTE massive MIMO.

4

Yes normally it is considered as physical antenna ports.

5

This is true only with classical antenna.

When it is about massive MIMO this is not true anymore…

6

Yes totally agreed, but I think the above pasted picture is for normal classic antenna.

7

Yes, these are normal antennas, no massive MIMO.

8

Update:

LTE PDSCH Power configuration tool V2.1.xlsx.zip (501.9 KB)

2 Likes
