The Incredible Engineering Behind Transmission Systems: From Tower to Cellphone with Microscopic Power
Modern communication is marked by impressive engineering that often goes unnoticed in our daily lives. When we make a call or browse the internet on our cellphones, we rarely think about the distance the signal travels and the power levels involved for everything to work efficiently and quickly. In this article, weโll explore how transmission systems work, from transmission towers (Base Stations - RBS) to the receiver in your cellphone, and how similar technologies apply to digital TV as well.
Transmission and Reception Power in Cellular Systems**
A typical Base Station (RBS), responsible for transmitting the cellular signal, operates at an average power of 80 watts (W). This is equivalent to about 49 dBm. Now, letโs think about how your cellphone receives this signal.
While the tower transmits at 80 W, the cellphone receives a much smaller power, in the order of picowatts (pW). A common example of cellular reception is around -86 dBm, which is approximately 0.00000000025 W (or 0.25 nanowatts).
Letโs break down this power to give you an idea of how small that value is:
- 80 W from the transmission tower.
- 0.00000000000025 W (250 picowatts) received by the cellphone.
Thatโs a difference of 11 zeros after the decimal point! Even with this incredibly low power, the cellphone can still make calls, download data at high speeds, and provide a smooth and satisfying user experience.
Digital TV: Even Higher Transmission Power with Similarly Low Received Signals
Now, letโs compare with digital TV systems. A TV transmitter, such as that of Rede Globo, can operate with much higher power, in the range of 1000 W (60 dBm) or even more, depending on the coverage area. However, even with much higher transmission power, the TVs in our homes, which are miles away from the transmitter, also receive incredibly weak signals.
A TV antenna can pick up signals in the nanowatt (nW) range or less, and still provide a clear Full HD image. For comparison, while the digital TV transmitter operates at around 1000 W (60 dBm), the receiver may be dealing with 10 nW, which corresponds to approximately -50 dBm.
- Transmission: 1000 W (60 dBm)
- Reception: 10 nW (โ50 dBm)
This shows how, even with enormous differences in power, modern digital technologies can deliver impressive quality, whether for cellular communication or TV signal reception.
The Engineering Behind It All: How to Do So Much with So Little?
Given that the power received by cellular devices is so small, how is it possible to maintain call quality and fast downloads? The answer lies in the complex engineering that surrounds the transmission and reception system.
Efficient Transmission: Antennas, Modulation, and Power Focus
RBS antennas are designed to transmit signals in a focused and efficient manner. Even with 80 W (~49 dBm) of power, these antennas can direct energy to specific areas, covering large regions. Additionally, modern modulation techniques (such as QAM, OFDM in 4G and 5G) allow for the transmission of large amounts of data via radio signals.
Reception Sensitivity and Error Correction
Modern cellphones have extremely sensitive reception circuits, capable of detecting signals that are far below the background noise level. This is thanks to low-noise amplifiers (LNAs), which can โboostโ weak signals without significantly increasing noise. Moreover, error correction algorithms ensure that any corrupted data during transmission can be recovered.
Multiple Channels and Spectral Efficiency
Systems like 5G use multiple simultaneous channels and multiplexing techniques to optimize frequency spectrum usage. This means that even with reception power as low as 0.25 pW (-86 dBm), the cellphone can establish extremely fast connections, with low latency and high download speeds, using technologies like MIMO (Multiple Input, Multiple Output) to combine multiple signals at once.

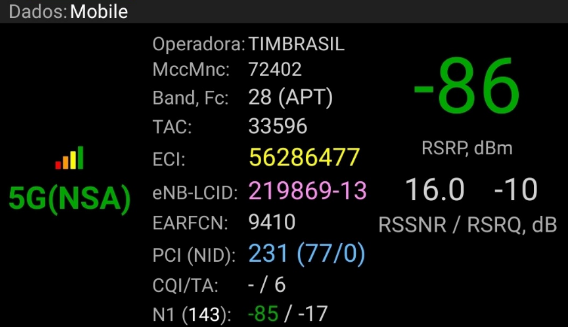

In the example below, my cellphone is connected to TIM Brazilโs 5G (NSA) on the 700 MHz frequency, receiving a signal of -86 dBm, which is considered strong.

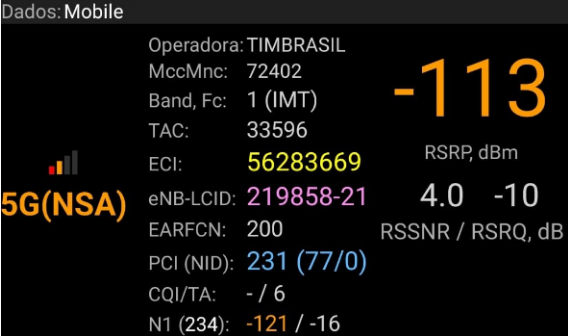

In this second example, the signal is even weaker, around -113 dBm. However, unlike the previous example, we are connected on the 2100 MHz frequency, which has a higher tolerance to interference (RTWP).
For Vivo (Telefรดnica Brasil), with which I have more experience, I know that on the 700 MHz frequency, up to -108 dBm is tolerable. For higher frequencies, such as 2100 MHz, up to -113 dBm is tolerable. So, in this example, we are at the acceptable limit, assuming TIM Brazil has the same metrics as Vivo.
Low Latency and Smart Networks
The architecture of modern networks also contributes to the seamless user experience. With the introduction of 5G and ultra-low latency techniques, data can be sent and received in milliseconds, providing virtually instantaneous communication. The intelligent division of the network into โslicesโ allows different types of data to be prioritized as needed, ensuring that tasks such as streaming, downloads, and voice calls are optimized simultaneously.
Conclusion
The engineering behind cellular transmission systems and digital TV is nothing short of fascinating. Even with huge power differences between what is transmitted and what is received, communication technology can turn incredibly weak signals into clear voice calls, fast data downloads, and high-definition TV images.
The secret lies in the combination of highly efficient antennas, sensitive receivers, advanced modulation techniques, and error correction algorithms. Thus, whether itโs 80 W from an RBS or 1000 W from a digital TV transmitter, the signal reaches your device with powers as small as pico or nanowatts, but is still transformed into high-quality experiences.
Next time you make a call or watch TV, remember the incredible engineering behind this invisible โmagicโ!
