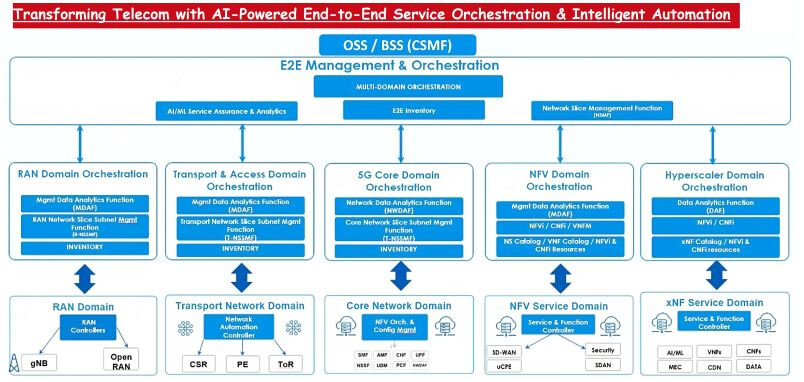

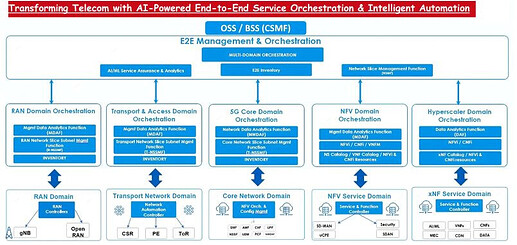

Below is the image along with its functional explanation, its self explanatory.
To make it easy to understand, I have split the summary in 4 key aspects i.e. as below
Explanation: Ex
Inter-working: In
Use: Use
Orchestration: Orch
So lets go from North to South to understand each terms
OSS/BSS (CSMF)
Ex: Systems for customer & service Mgmt.
In : Interfaces customer systems with service Orch.
Use: Controls Orch, billing, & customer Mgmt.
E2E Mgmt & Orch
Ex / In : Central Mgmt control for coordinating multi-domain Orch.
Use: Orchestrates multi-domain service operations.
AI/ML Service Assurance & Analytics
Ex: AI-driven assurance for performance & predictive analytics.
In : coordinating with Analytics & Orch.
Use: Automates service assurance & predictive maintenance.
E2E Inventory
Ex: Centralized system tracking all network resources & assets.
In : Tracks resources across all network domains.
Use: Ensures real-time resource availability.
Network Slice Mgmt Function (NSMF)
Ex: Responsible for managing network slices
In : Allocates network slices across domains.
Use: Enables dedicated network slices for all use cases.
RAN Domain Orchestration (DO)
Ex / In: Manages / orchestrates the 4G/5G RAN domain, elements & resources.
Use: Optimizes RAN connectivity for gNB & Open RAN.
Transport & Access DO
Ex / In: Controls transport N/W elements connecting core, RAN & access domains
Use: Facilitates data flow & inter-domain connectivity
5G Core DO
Ex / In: Orchestrates & Coordinate with core NFs for 5G services.
Use: Manages core components for 5G operation.
NFV DO
Ex / In: Controls / orchestrates VNF’s & resources for network efficiency.
Use: Manages VNFs & optimizes virtualized N/W service
Hyperscaler DO
Ex / In : Orchestration for large-scale cloud services & virtual infra.
Use: Provides high availability & scalability with hyper-scale cloud resources.
RAN Controllers
Ex & In: Controls gNB & Open RAN, optimizing radio performance.
Use: Optimizes radio performance & resource Mgmt.
N/W Automation Controller
Ex / In: Automates configuration & Mgmt of N/W transport elements & its operation.
Use: Supports configuration & troubleshooting.
Core N/W Orch & Config Mgmt
Ex: Orchestrates & configures core N/W components for service delivery.
In : Manages core functions (AMF, SMF, UDM).
Use: Ensures service delivery through core configuration.
NFV Service Domain (SD)
Ex / In: Orchestrates / Integrates virtual functions like SD-WAN & uCPE.
Use: Manages security & NFV-based services.
xNF SD
Ex / In : Manages, coordinates & orchestrates functions like AI, MEC, & CDN services.
Use: Orchestrates advanced services for AI-driven automation
