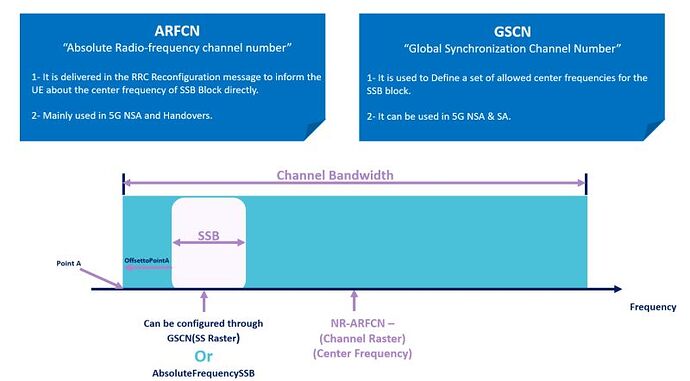

Generally, two main ways are used to configure the SSB Frequency position.
- ARFCN “Absolute Radio-frequency channel number.”
-
It is delivered in the RRC Reconfiguration message to inform the UE about the center frequency of SSB Block directly.
-
ARFCN is used to calculate center channel bandwidth and Absolute-SSB-Frequency and is called channel raster.
-
The Channel Raster has a relatively high resolution using Low-Frequency scan granularity (15,30,60 & 100Khz).
-
The Absolute Radio frequency Number is delivered in the RRC Reconfiguration message, which means that the UE will receive the SSB Frequency domain position directly from the 4G Leg.
-
Mainly used in 5G NSA and Handovers.
- GSCN “Global Synchronization Channel Number.”
-
GSCN stands for Global synchronization channel number, can be used in both 5G-NSA & 5G SA, and is known as a Synchronization raster.
-
The Synchronization Raster defined a set of allowed center frequencies for the Synchronization Signal / Physical Broadcast Channel block.
-
The Synchronization raster has a relatively low resolution(1.2,1.44&17.27 MHz) to reduce the number of positions a UE must check when completing a band scan, i.e., the band scan procedure becomes faster and more efficient.
-
It can be used in 5G NSA & SA.
