What is difference between TM4 in 2x2 MIMO and TM4 in 4x4 MIMO? Which should have better gain?

4G LTE
, , ,
1

Actually TM4 (closed loop MIMO - PMI Feedback from UE) is working for MIMO mode whether in 2x2 or 4x4 MIMO but the difference is in PMI codebook size in case of TM4 (Closed-loop MIMO):

  • TM4 in 2x2 MIMO —> have PMI codebook size = 4 for 2-antenna-port
  • TM4 in 4x4 MIMO —> have PMI codebook size = 16 for 4-antenna-port

So TM4 in 4x4 MIMO have better gain than 2x2 MIMO due to large available codebook size.

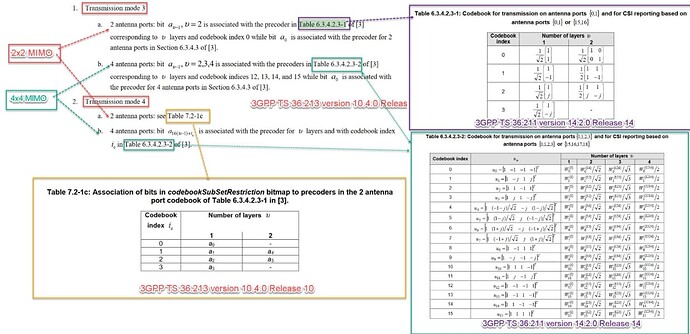

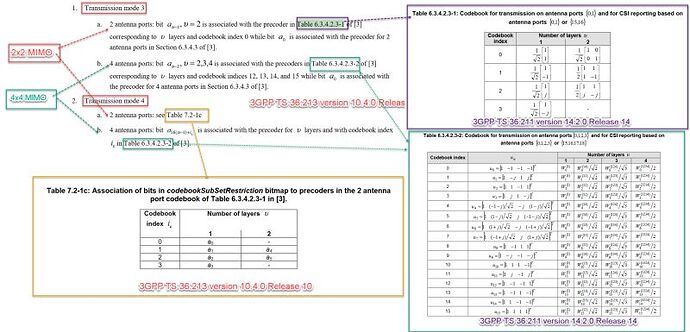

References:

  • 3GPP TS 36.211 version 14.2.0 Release 14,
  • 3GPP TS 36.213 version 10.4.0 Release 10

What is difference between TM4 in 2x2 MIMO and TM4 in 4x4 MIMO
What is difference between TM4 in 2x2 MIMO and TM4 in 4x4 MIMO1241×602 92.4 KB
