What UE shows on network bars during a call in EN-DC mode?

5G NR
, ,
1

Hi All.

If we are making a call in EN-DC mode, on conversation time in mobile on the network bars, UE shows 5G or 4G?

2

5G.

Because upper layer indication is true in SIB2.

3

Please check this post: 5G icon displayed, but no 5G coverage area - #9 by Fathy_Farouk

4

Thanks!

This point is very good: :point_down:

5

Right.

Now in a Drive Test, if there is coverage of 5G it shows 5G icon or if no coverage it shows 4G icon.

5G: :point_down:

5G
5G540×1206 57.6 KB

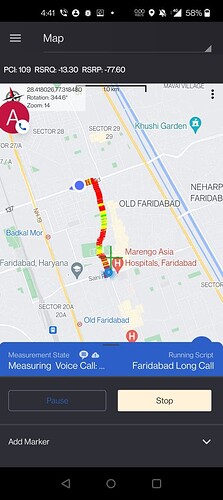

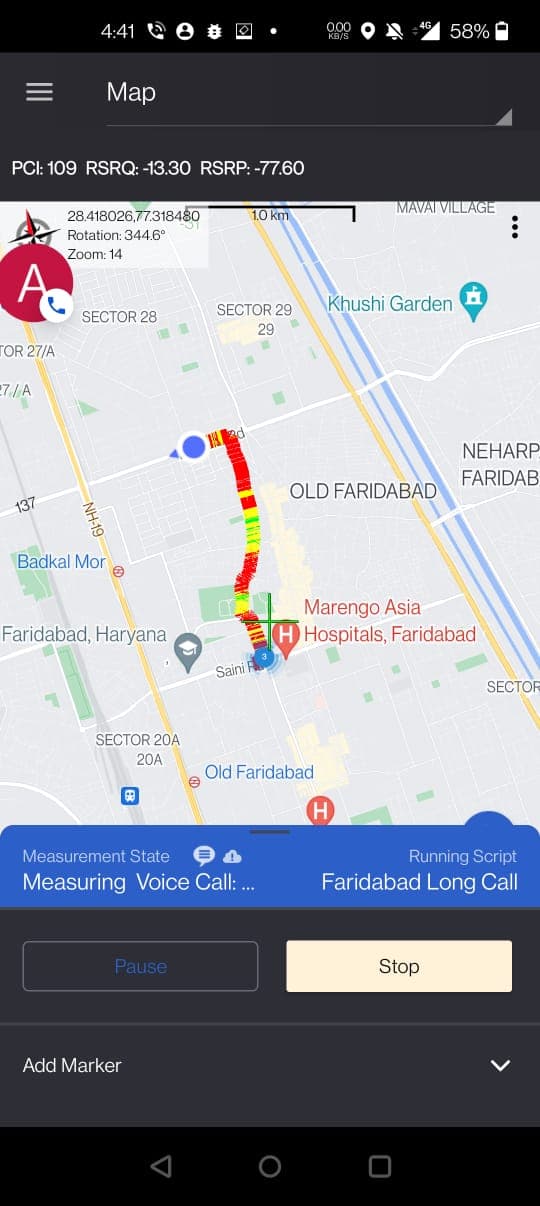

4G: :point_down:

4G
4G540×1206 57.7 KB

6

UE is also connected to different PCI in both the pictures.

Are both the PCIs from the same cell?

7

Different.
