PON: passive optical network.
-
It’s an optical devices and Cables connected together to Transport traffic.
-
Any kind of traffic can be sent over PON like voice, video, VOIP, IPTV, streaming, private data…
-
Passive means the devices between service provider and client will be passive, will not consume power.
-
Passive devices like fiber cables, splitters, connectors, multiplexers, couplers, splices.
-
Passive components is not electrically powered components, then the network will be operationally cost efficient.
-

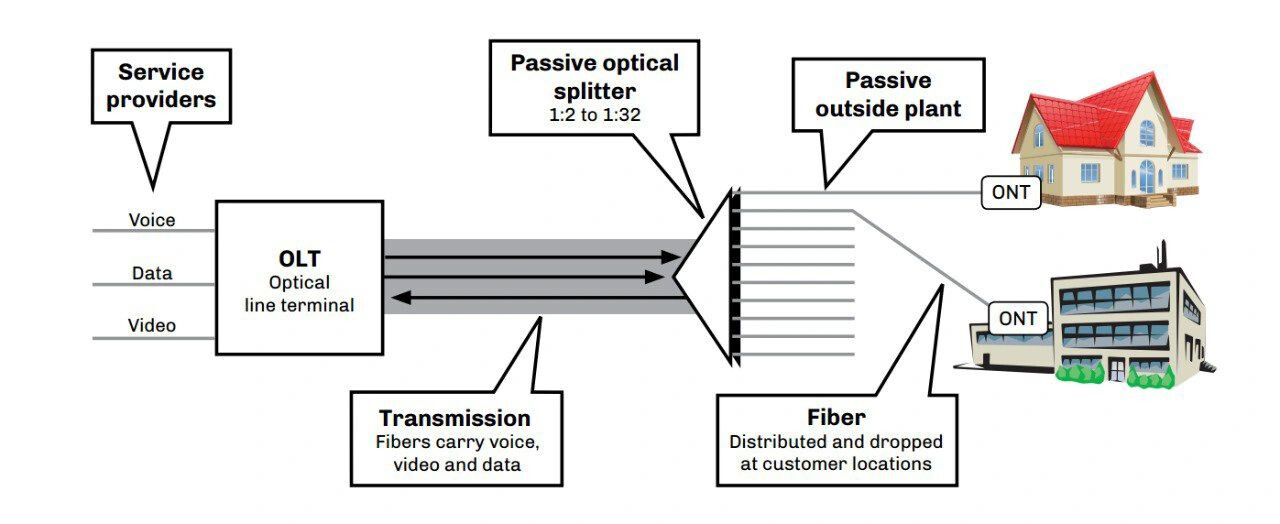

Only the devices on service provider side OLT and client side ONT are electrically powered.
-
OLT: optical line terminal, the device provided the service to clients, located at service provider side / central office.
-
ONT: optical network terminal, the device that translates the traffic located within client side.
-
ODN: optical distribution network, it represent the components between OLT and ONT like splitter, coupler, fiber cables…
-
Splitters cna split signals up to 1:128 Level, most common is 4, 16, 32.
-
Most common wavelengths used 1310 nm, 1490 nm.
-
In DWDM we usually use 1525 - 1565 nm C band.
